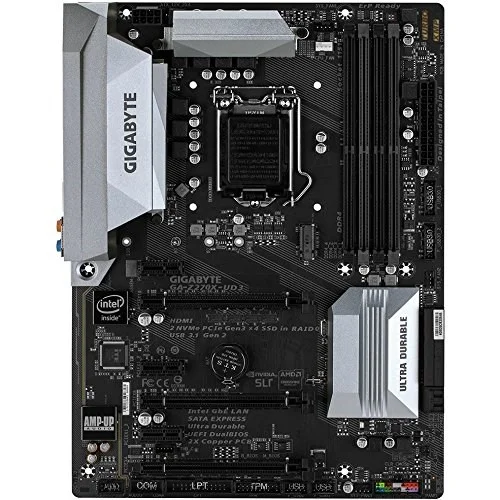

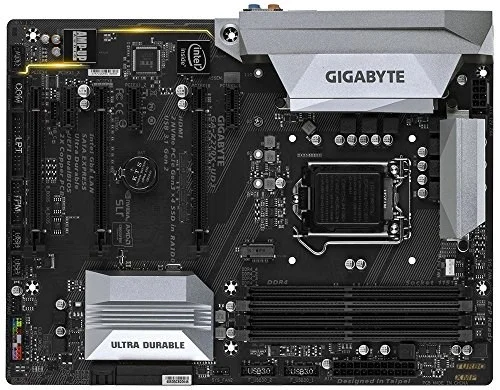

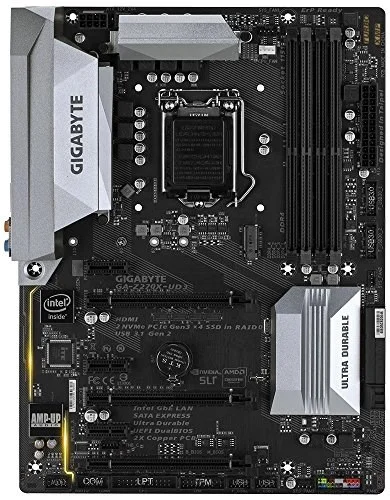

GIGABYTE GA-Z270X-UD3 LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE GA-Z270X-UD3 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3866 MT/s (OC).
- Supports 7th/ 6th Generation Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Fast USB 3.1 Gen 2 with USB Type-C and Type-A
- 2-Way SLI & 3-Way CrossFire Multi-Graphics Support
- Dual NVMe PCIe SSDs in RAID 0 Support
- Intel Optane Memory Ready
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- ALC1220 120dB SNR HD Audio with Smart Headphone Amp
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- 2X Copper PCB Design
- Lightning-Fast Intel Thunderbolt 3 AIC Support
- GIGABYTE UEFI DualBIOS
- APP Center Including EasyTune and Cloud Station Utilities
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-Z270X-UD3 |
| Launch Date | January 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-Z270X-UD3 |
| SKU Code | GA-Z270X-UD3 |
| GTIN / EAN | 889523008126 |
