GIGABYTE GA-Z97X-GAMING 5 LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

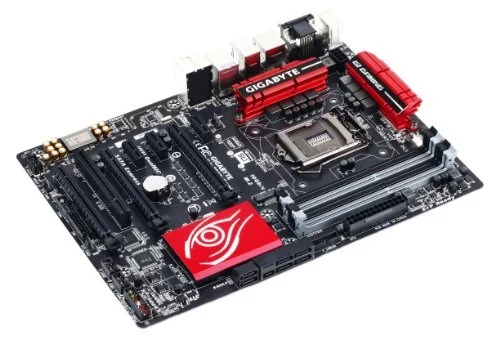

The GIGABYTE GA-Z97X-GAMING 5 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 3200 MT/s (OC).
- Supports 4th and 5th Generation Intel Core processors
- Creative SoundBlaster X-Fi MB3 gaming audio suite
- Audio Noise Guard with LED path lighting
- Gold plated display and audio ports
- High end Nichicon audio capacitors
- Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier
- Killer E2200 gaming networking platform
- Extreme multi graphics support
- SATA Express support for 10 Gb/s data transfer
- M.2 for SSDs drives with up to 10 Gb/s data transfer
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune and Cloud Station utilities
- GIGABYTE UEFI DualBIOS
- Solid performance
- M.2 and SATA Express support
- Killer NIC
- Very good onboard audio
- None
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-Z97X-GAMING 5 |
| Launch Date | May 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1800 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2500 / DDR4-2600 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3100 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

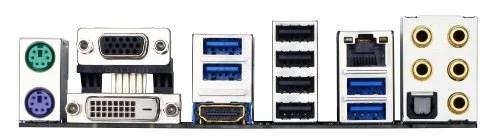

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-Z97X-GAMING 5 |
| SKU Code | GA-Z97X-GAMING 5 |
| GTIN / EAN | 562832983482 |
Price History (last 12 months)
Plots available price points within the past 12 months.
