GIGABYTE GA-Z97X-UD5H LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

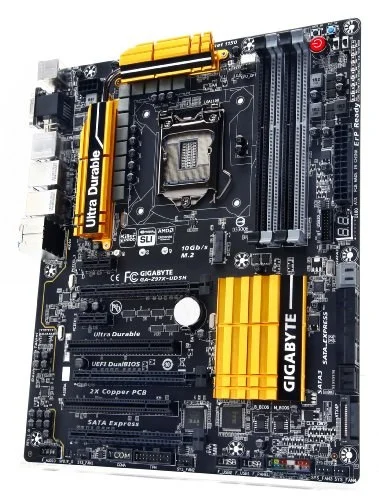

The GIGABYTE GA-Z97X-UD5H is a ATX motherboard for LGA1150. It supports DDR3 memory up to 3000 MT/s (OC).
- Supports 4th and 5th Generation Intel Core processors
- Extreme multi graphics support
- Precise digital CPU power design
- SATA Express support for 10 Gb/s data transfer
- M.2 for SSDs drives with up to 10 Gb/s data transfer
- Killer E2200 and Intel gaming networking
- Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier
- 2x copper PCB design
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune and Cloud Station utilities
- GIGABYTE UEFI DualBIOS
- Very good performance
- Both Intel and Killer NIC
- Realtek ALC1150 audio
- Not so easy to overclock
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-Z97X-UD5H |
| Launch Date | May 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1800 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2500 / DDR4-2600 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

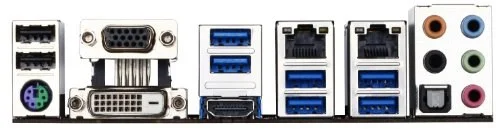

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-Z97X-UD5H |
| SKU Code | GA-Z97X-UD5H |
| GTIN / EAN | 818313020482 |
