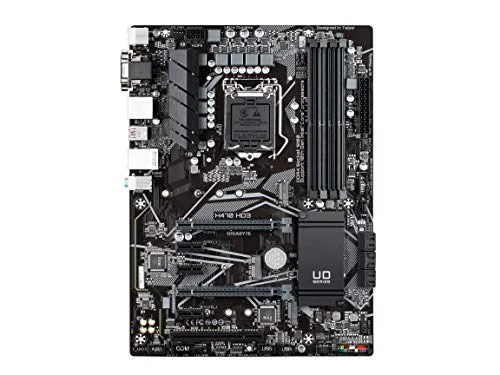

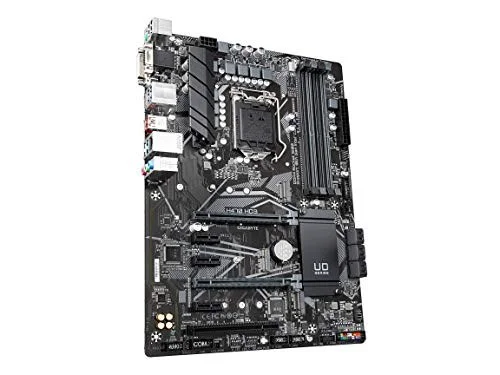

Gigabyte H470 HD3 LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte H470 HD3 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
- Dual Nvme Pcie Gen3 X4 M.2 Connectors
- Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers With FAN STOP
- Intel Optane Memory Ready
- Intel Gbe LAN With Cfosspeed Internet Accelerator Software
- Intel USB 3.2 Gen 1 Type-C Support
- 3 Display Interfaces Support
- M.2 E-Key Slot For Pcie WIFI Module Upgradable
- Anti-Sulfur Resistors Design
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | H470 HD3 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H470 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

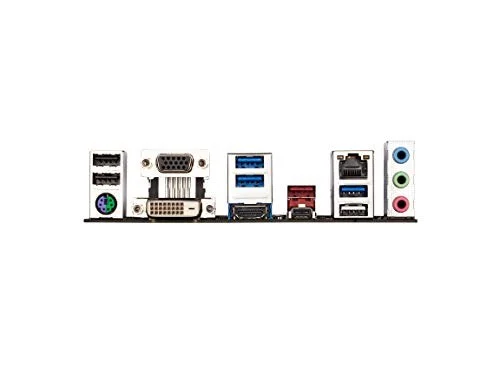

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H470 HD3 |
| SKU Code | H470 HD3 |
| GTIN / EAN | 889523021965 |
