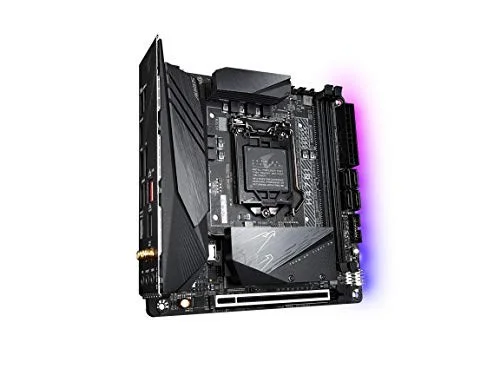

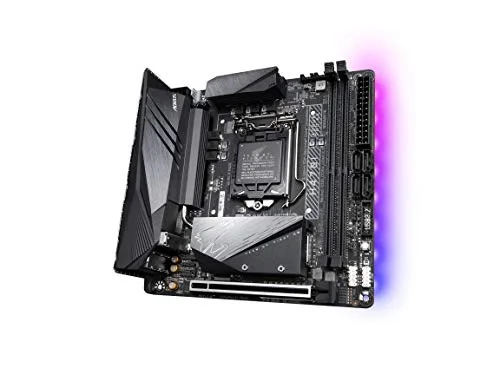

Gigabyte H470I AORUS PRO AX LGA1200 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte H470I AORUS PRO AX is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core Series Processors
- Direct 5+1 Phase Digital VRM Design Solution With Drmos
- Dual Channel Non-ECC Unbuffered DDR4, 2Dimms
- Extended MOSFET Heatsink And Multi-Layered PCH M. 2 Heatsink With Heatpipes And Thermal Baseplate
- Supreme Flexibility With Intel Optane Memory Ready
- Onboard Intel Wifi 6 802. 11Ax 2T2R & BT5 With AORUS Antenna
- Blazing Fast Dual LAN Intel 2. 5Gbe LAN And Intel Gbe LAN With Cfosspeed
- HDMI 2. 0 Supports Premium 4K Resolution
- Smart Fan 5 Features Multiple Temperature Sensors And Hybrid Fan Headers With FAN STOP
- ALC1220-VB Enhance 114Db(Rear)/ 110Db(Front) SNR In Microphone With WIMA Audio Capacitors
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | H470I AORUS PRO AX |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H470 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H470I AORUS PRO AX |
| SKU Code | H470I AORUS PRO AX |
| GTIN / EAN | 889523022061 |
