GIGABYTE H610M S2H LGA1700 Micro-ATX DDR5 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

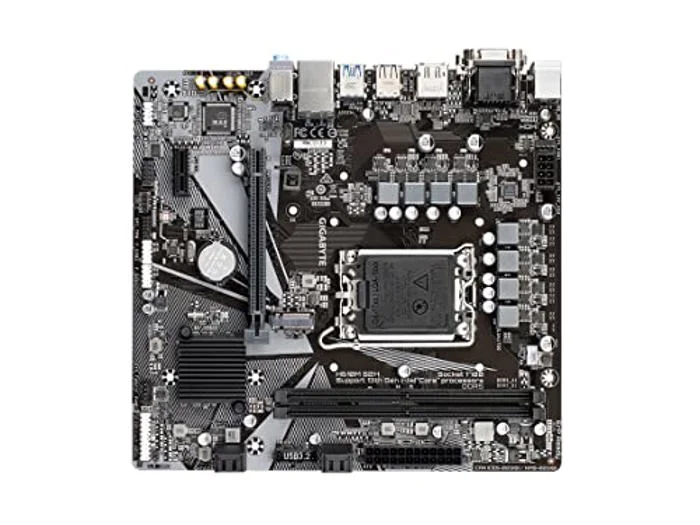

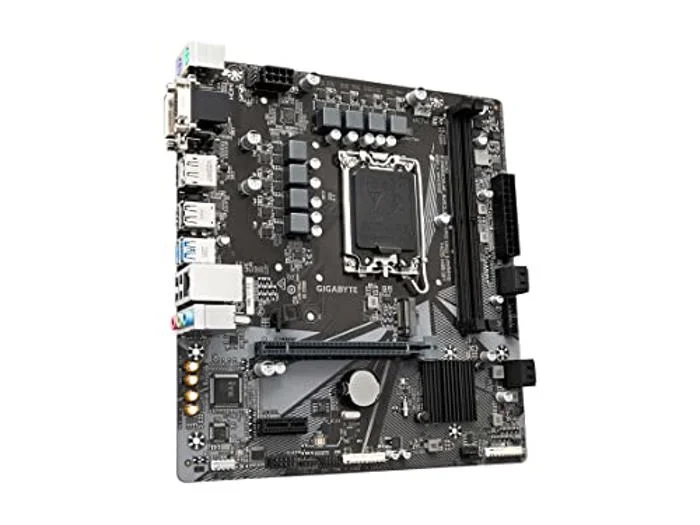

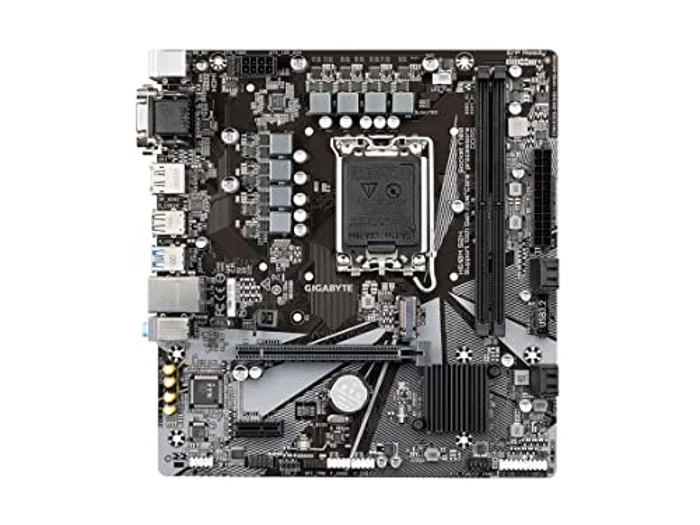

The GIGABYTE H610M S2H is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 5600 MT/s (OC).

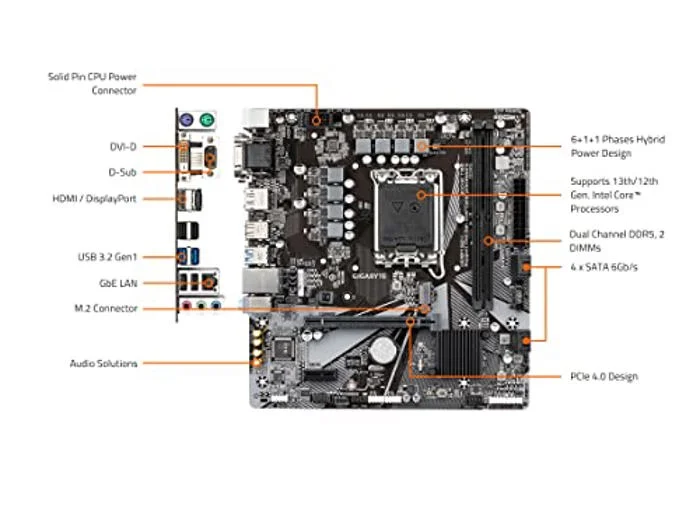

- Intel LGA 1700 Socket: Supports 13th/12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- Sturdy Power Design: 6+1+1 Hybrid Digital VRM Design
- Connectivity: PCI 4.0, Single NVMe PCIe 3.0 x4 M.2, USB 3.2 Gen1
- Fast Networking: Realtek 1GbE LAN
- Dynamic Audio: Realtek Audio CODEC
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | H610M S2H |
| Launch Date | March 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel H610 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

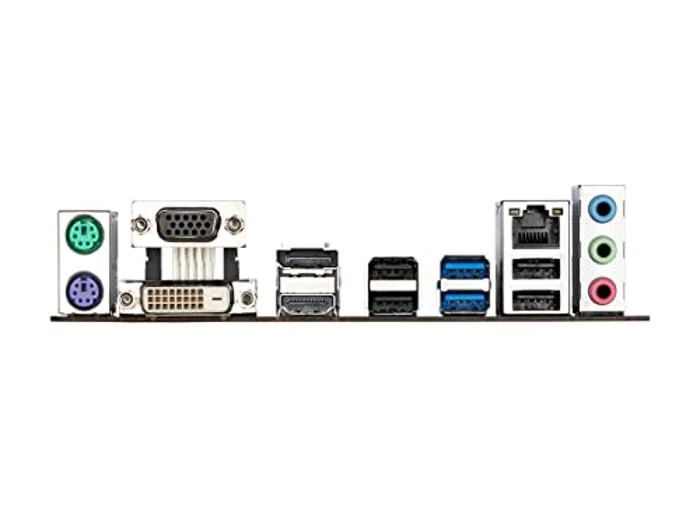

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H610M S2H |
| SKU Code | H610M S2H |
| GTIN / EAN | 889523036716 |
