GIGABYTE H810M S2H LGA1851 Micro-ATX DDR5 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

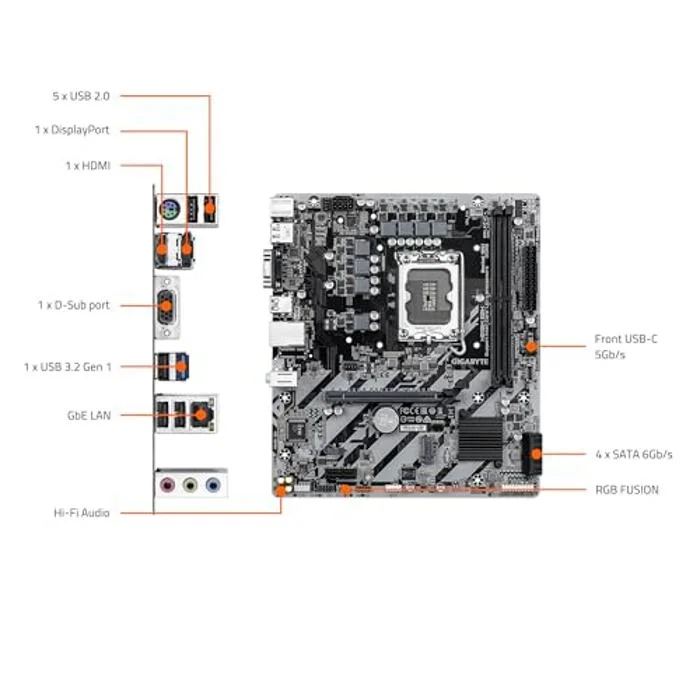

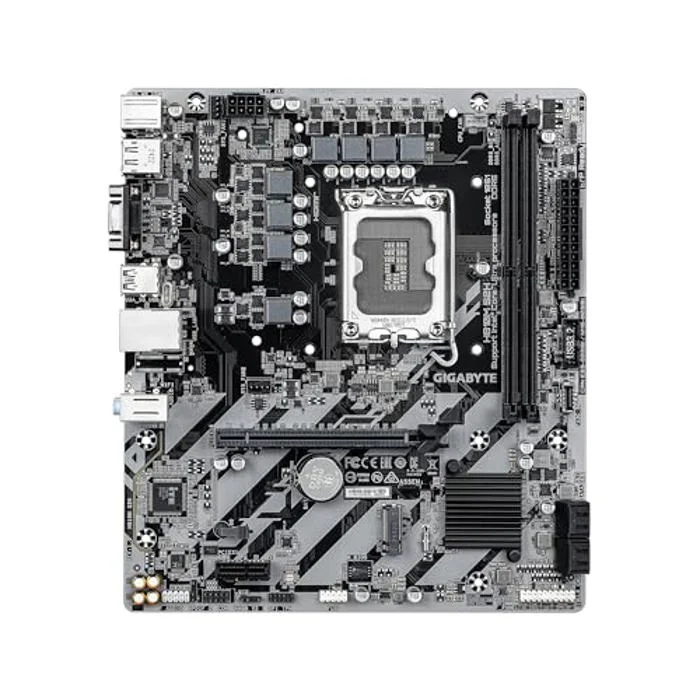

The GIGABYTE H810M S2H is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 6400 MT/s (OC).
- Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 2*DIMMs

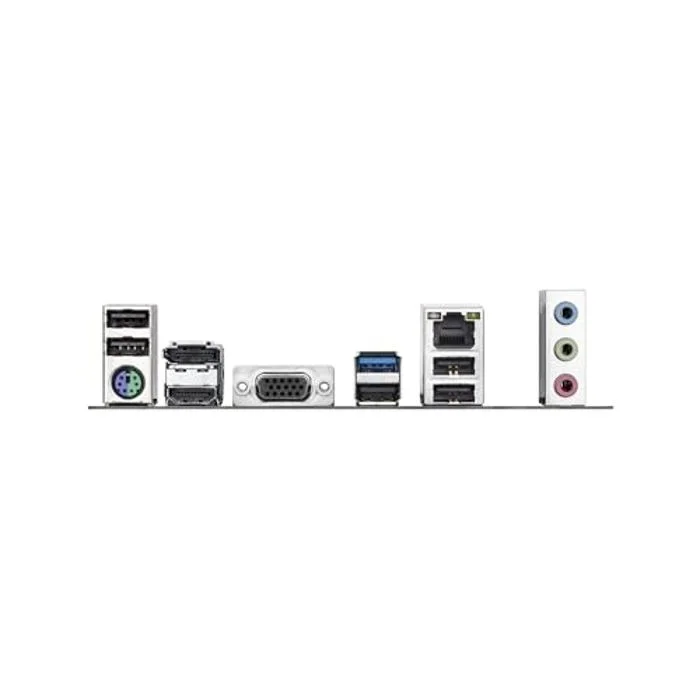

- Connectivity: PCIe 4.0, 1x M.2 Slots, USB 3.2 Gen1, HDMI, DisplayPort
- DIY Friendly: PCIe EZ-Latch, EZ Debug Zone
- Networking: 1GbE LAN
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | H810M S2H |
| Launch Date | March 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel H810 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2280 - M Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H810M S2H |
| SKU Code | H810M S2H |
| GTIN / EAN | 889523047996 |
