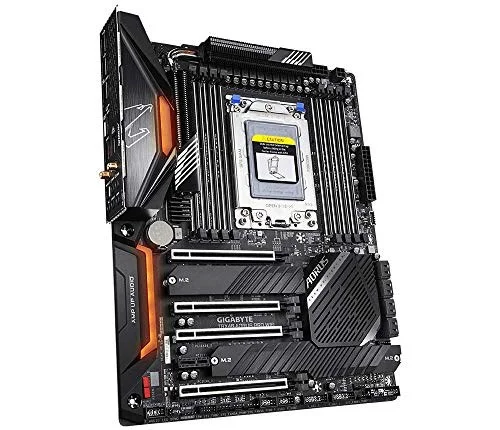

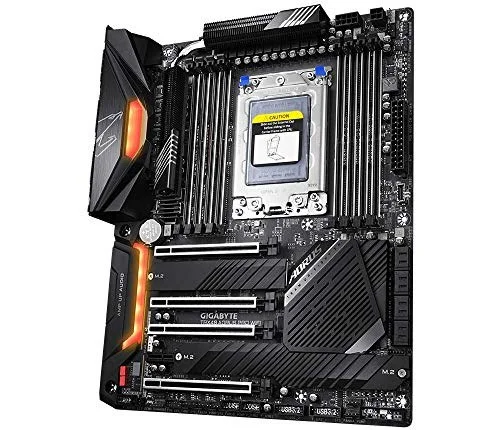

Gigabyte TRX40 AORUS PRO WIFI sTRX4 ATX DDR4 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte TRX40 AORUS PRO WIFI is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4400 MT/s (OC).
- Supports 3Rd Gen AMD Ryzen Threadripper Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 Dimms
- 12+2 Phases Infineon Digital VRM Solution With 70A Power Stage
- Advanced Thermal Design With Fins-Array Heatsink
- Intel Gbe LAN With Cfosspeed Internet Accelerator
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | TRX40 AORUS PRO WIFI |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

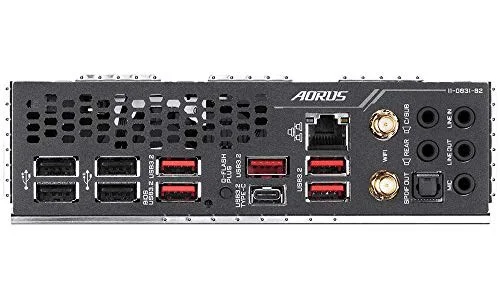

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TRX40 AORUS PRO WIFI |
| SKU Code | TRX40 AORUS PRO WIFI |
| GTIN / EAN | 889523020203 |
