GIGABYTE TRX50 AI TOP sTR5 EATX DDR5 2048 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

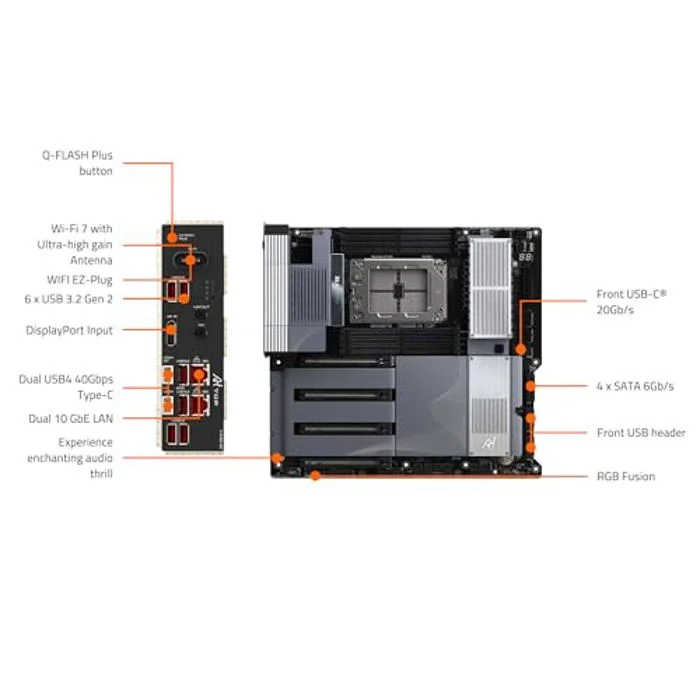

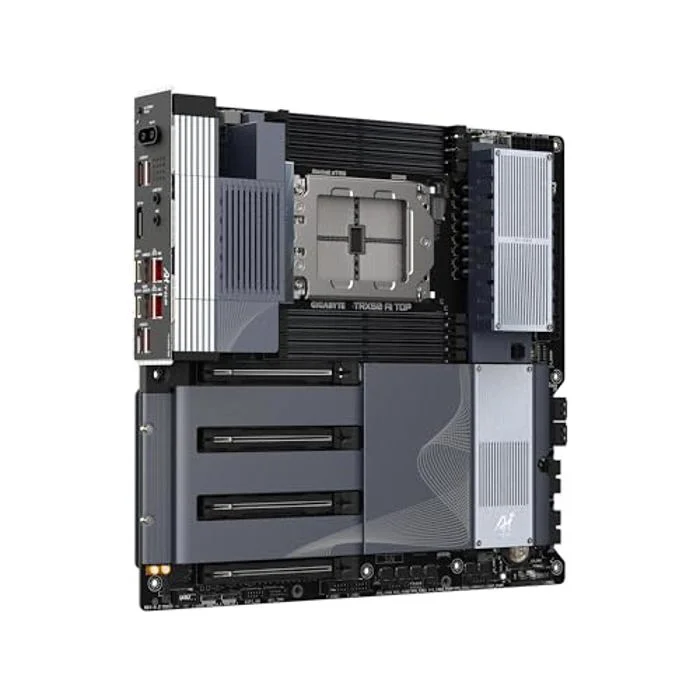

The GIGABYTE TRX50 AI TOP is a EATX motherboard for sTR5. It supports DDR5 memory up to 8000 MT/s (OC).
- AMD sTR5 Socket: Supports AMD Ryzen Threadripper PRO 7000 Series Processors/Ryzen Threadripper 7000 Series Processors
- Power Design: 16+8+4 Phases Digital VRM Solution
- DDR5 Compatible: 8*SMD ECC R-DIMMs with Maximum 2TB capacity
- Cutting-Edge Thermal Design: VRM Thermal Armor Advanced, M.2 Thermal Guard
- Next Gen Connectivity: Dual USB4 Type-C, PCIe 5.0
- EZ-Latch: M.2 Heatsinks, M.2 Slots, PCIe 5.0, & M.2 Connectors with a Quick Release & Screwless Design
- Fast Networking: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | TRX50 AI TOP |
| Launch Date | July 2024 |
| CPU Socket | sTR5 |
| Chipset Model | TRX50 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 2048 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TRX50 AI TOP |
| SKU Code | TRX50 AI TOP |
| GTIN / EAN | 889523044667 |
