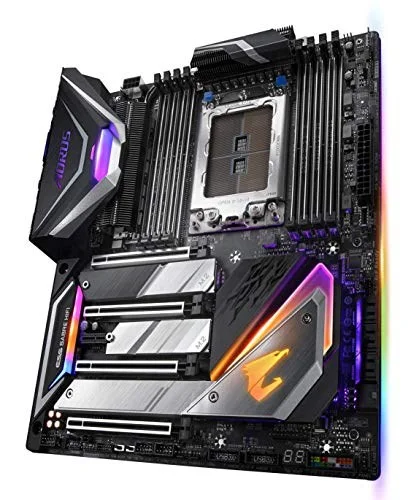

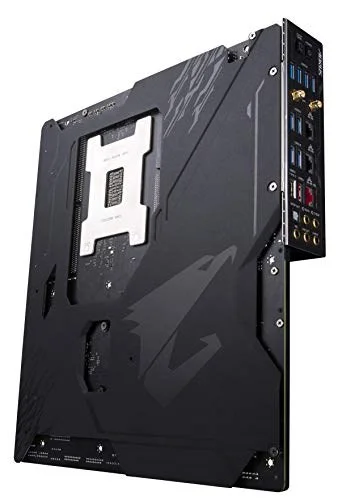

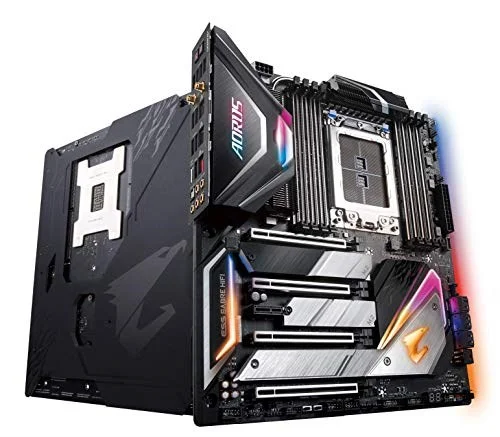

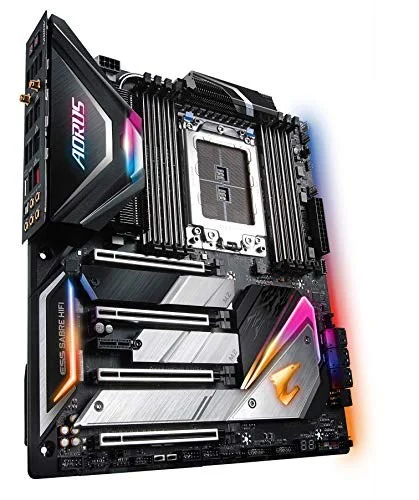

GIGABYTE X399 AORUS XTREME sTR4 EATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE X399 AORUS XTREME is a EATX motherboard for sTR4. It supports DDR4 memory up to 3600 MT/s (OC).
- SocketTR4, Supports AMD Ryzen Threadripper 2 (24core/250W) CPU
- DDR4, Quad-Channel, 8 DIMMs, ECC/R-DIMM support
- Upgraded Power Solution with 10+3 IR Digital Power for Stable OC
- 40% Heat Dissipation Enhance with Pure Copper Fin-Array Heatsink & Direct Touch Heatpipe
- High Performance Audio Quality with ALC1220-VB & ESS 9118 SABRE Audio DAC
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | X399 AORUS XTREME |
| Launch Date | |
| CPU Socket | sTR4 |
| Chipset Model | Intel X399 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

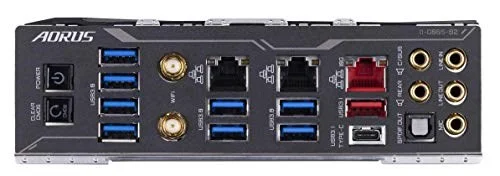

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X399 AORUS XTREME |
| SKU Code | X399 AORUS XTREME |
| GTIN / EAN | 889523014516 |
Price History (last 12 months)
Plots available price points within the past 12 months.
