Gigabyte X399 Designare EX sTR4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

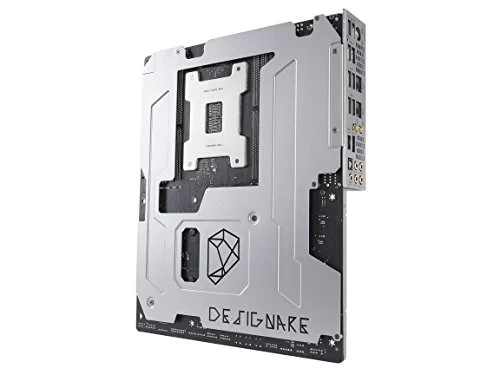

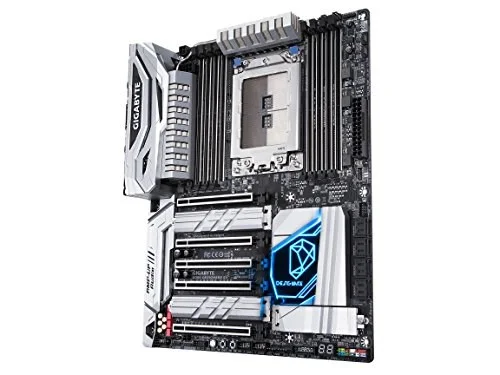

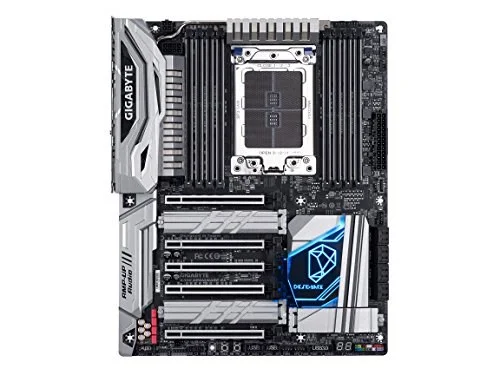

The Gigabyte X399 Designare EX is a ATX motherboard for sTR4. It supports DDR4 memory up to 3600 MT/s (OC).

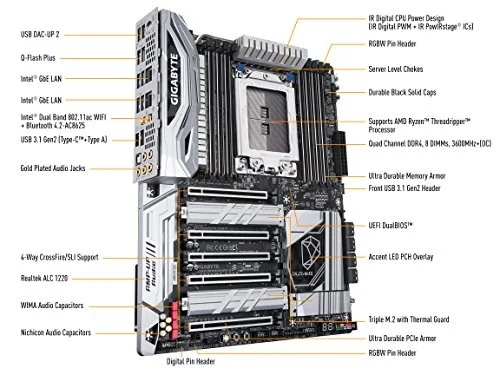

- Supports AMD Ryzen Thread ripper Processors
- Quad Channel ECC/Non-ECC Buffered DDR4, 8 DIMMs, 3600MHz+(OC)
- Fast Front and Rear USB 3.1 Type-C Interface
- 4-Way Graphics Support with Dual Armor and Ultra Durable Design
- Server-Class Digital Power Design & Gold Plated Solid Power Connectors
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X399 Designare EX |
| Launch Date | October 2017 |
| CPU Socket | sTR4 |
| Chipset Model | Intel X399 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 5 × PCIe x16 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

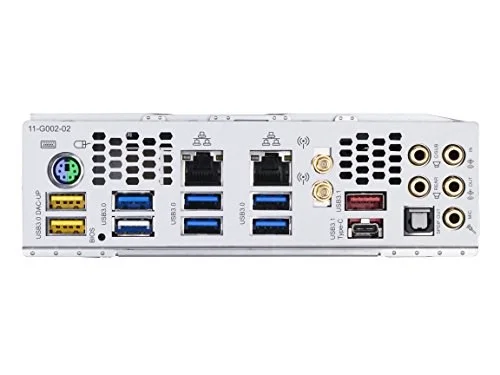

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X399 Designare EX |
| SKU Code | X399 Designare EX |
| GTIN / EAN | 889523011539 |
