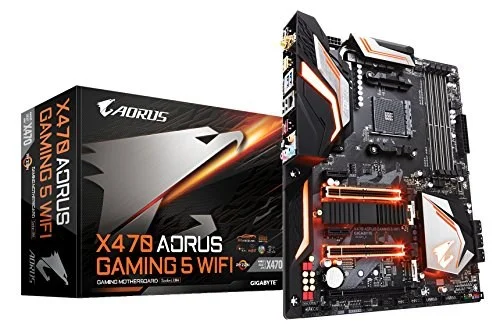

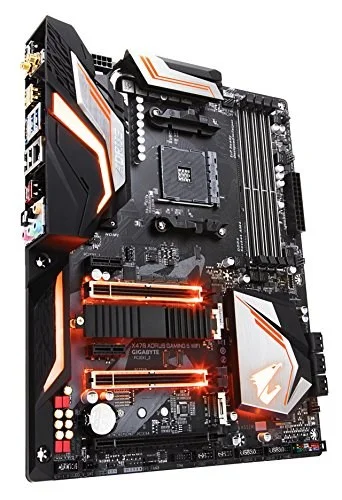

Gigabyte X470 AORUS GAMING 5 WIFI AM4 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte X470 AORUS GAMING 5 WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Gaphics/ Ryzen 1st Generation/ 7th Generation A-Series/ Athlon X4 Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 8+3 Phase Hybrid Digital PWM Design
- 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable Design
- Intel 802.11ac Wave2 2T2R WIFI & BT 5
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X470 AORUS GAMING 5 WIFI |
| Launch Date | April 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | AMD X470 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

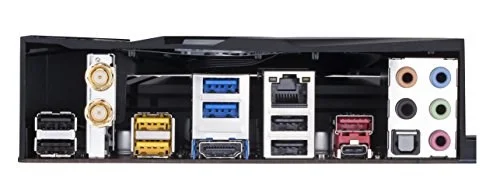

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X470 AORUS GAMING 5 WIFI |
| SKU Code | X470 AORUS GAMING 5 WIFI |
| GTIN / EAN | 889523013298 |
