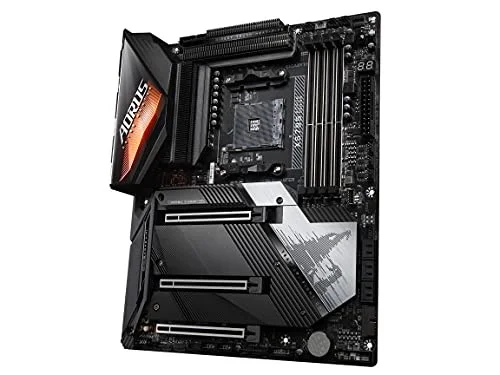

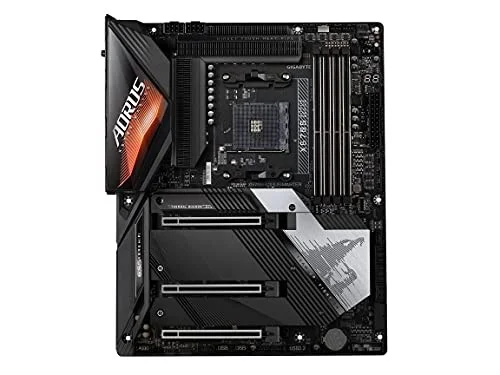

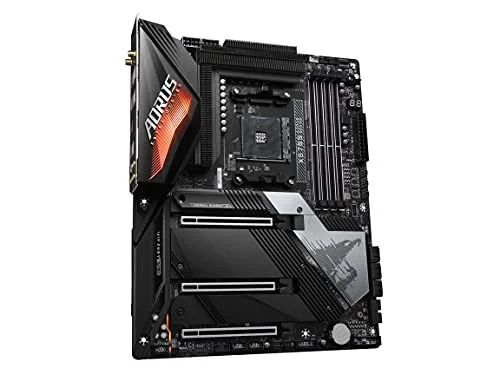

Gigabyte X570S AORUS MASTER AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

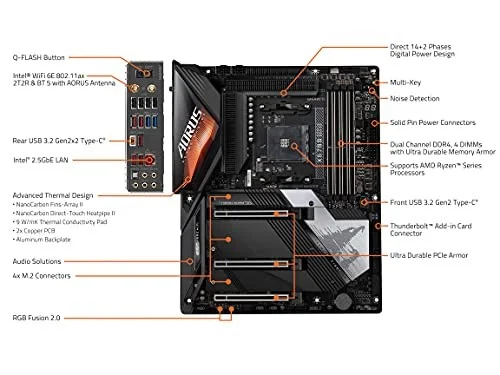

The Gigabyte X570S AORUS MASTER is a ATX motherboard for AM4. It supports DDR4 memory up to 5200 MT/s (OC).
- Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage
- Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate
- Intel WiFi 6E 802.11ax & BT 5.2
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X570S AORUS MASTER |
| Launch Date | July 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4600 / DDR4-4866 / DDR4-5000 / DDR4-5100 / DDR4-5200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

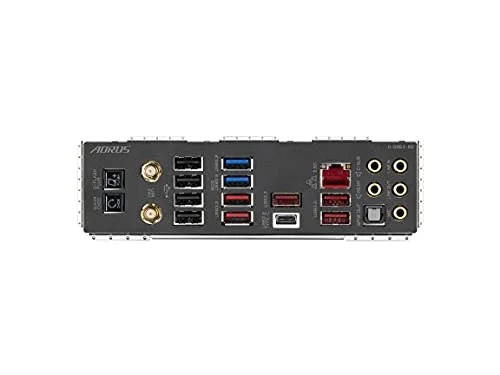

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570S AORUS MASTER |
| SKU Code | X570S AORUS MASTER |
| GTIN / EAN | 889523028735 |
