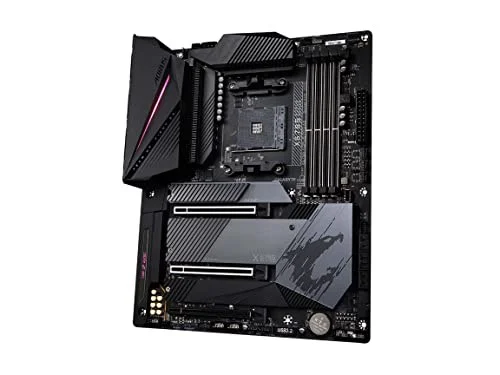

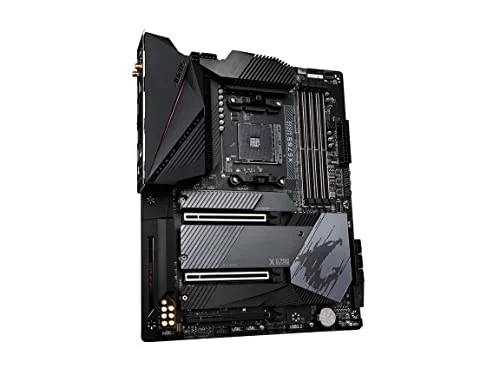

GIGABYTE X570S AORUS PRO AX AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE X570S AORUS PRO AX is a ATX motherboard for AM4. It supports DDR4 memory up to 5400 MT/s (OC).

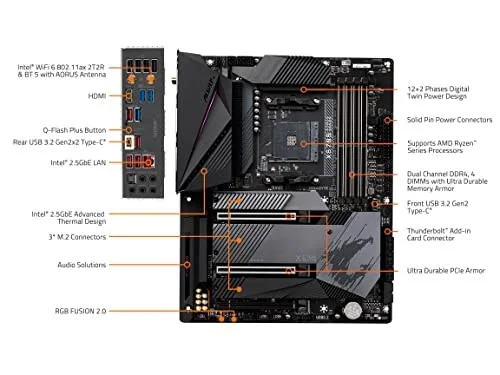

- Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
- Advanced Thermal Design - Fins-Array II, Heatsink & Direct Touch Heatpipe II
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards III
- AMP-UP Audio with ALC1220-VB
- Intel Gigabit LAN
- RGB FUSION with Multi-Zone Addressable LED Light Show Design
- Smart Fan 5 - Hybrid Fan Headers with FAN STOP and Noise Detection
- 1x Front Panel & 1x Rear USB 3.2 Gen 2 Type-C
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X570S AORUS PRO AX X570S AORUS PRO AX (rev. 1.1) |
| Launch Date | December 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5100 / DDR4-5200 / DDR4-5400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

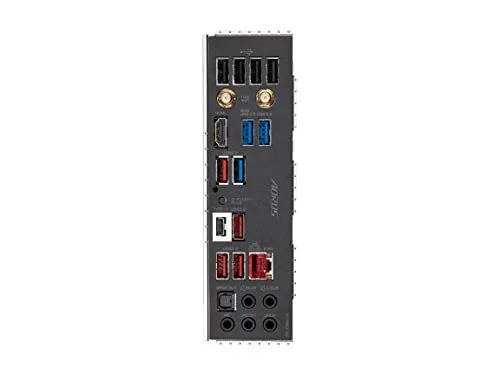

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570S AORUS PRO AX |
| SKU Code | X570S AORUS PRO AX |
| GTIN / EAN | 889523028865 |
