GIGABYTE X570SI AORUS PRO AX AM4 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

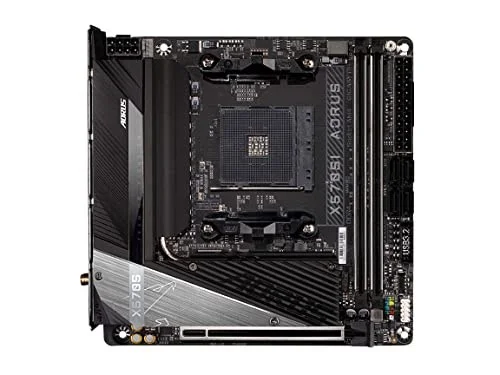

The GIGABYTE X570SI AORUS PRO AX is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 5200 MT/s (OC).

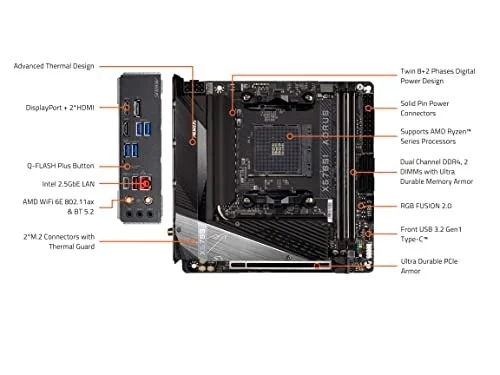

- Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage
- Groove Designed and Multi-layered Heatsinks for Chipset and M.2 Thermal Guard III with Heatpipe
- AMD WiFi 6E 802.11ax & BT 5.2
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Rear and Front USB3.2 Type-C for Fast and Versatile Connections
- AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X570SI AORUS PRO AX X570SI AORUS PRO AX (rev. 1.1) |
| Launch Date | February 2022 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5100 / DDR4-5200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X570SI AORUS PRO AX |
| SKU Code | X570SI AORUS PRO AX |
| GTIN / EAN | 889523029664 |
