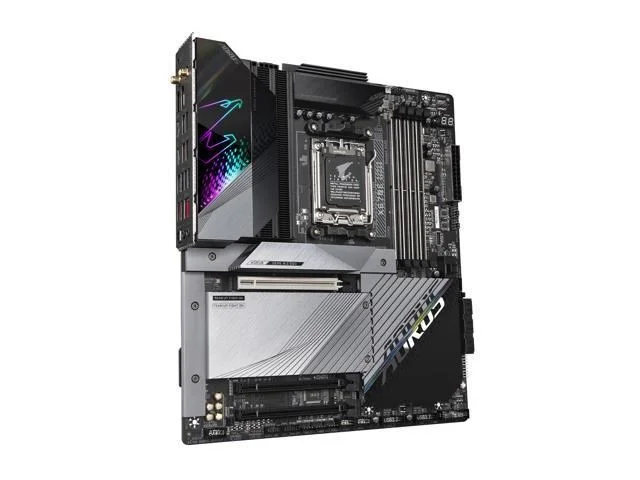

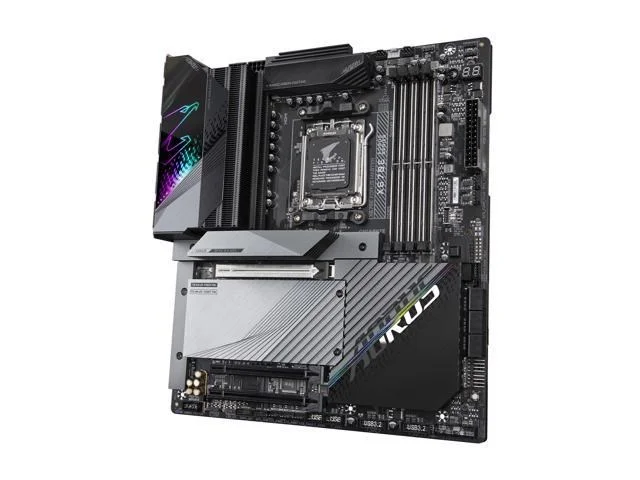

Gigabyte X670E AORUS MASTER AM5 EATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte X670E AORUS MASTER is a EATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

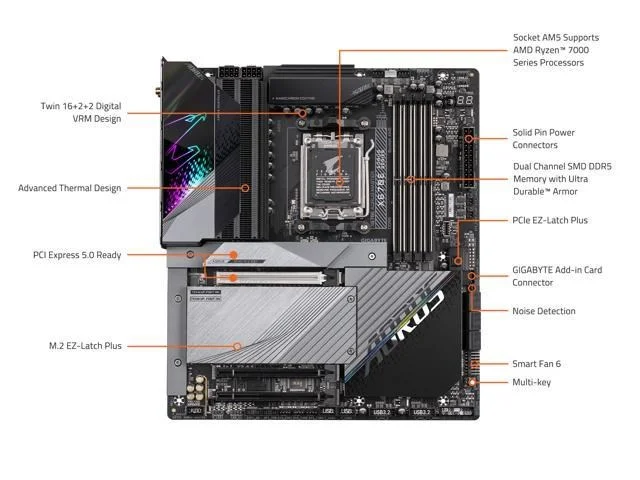

- AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors.
- DDR5 Compatible: 4*SMD DIMMs with ECC/Non-ECC Unbuffered Memory.
- Commanding Power Design: Direct 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB.
- Cutting-Edge Thermal Design: Fins-Array III & M.2 Thermal Guard III, Ultra Durable Armor, NanoCarbon Aluminum Backplate, Aluminum IO Cover.
- Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M.2, Dual USB-C, BT 5.3.
- EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design.
- Fast Networking: Intel 2.5GbE LAN, Intel WiFi 6E 802.11ax.
- Dynamic Audio: DTS:X Ultra, ALC1220 CODEC.
- Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU.
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X670E AORUS MASTER (rev. 1.0) X670E AORUS MASTER |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

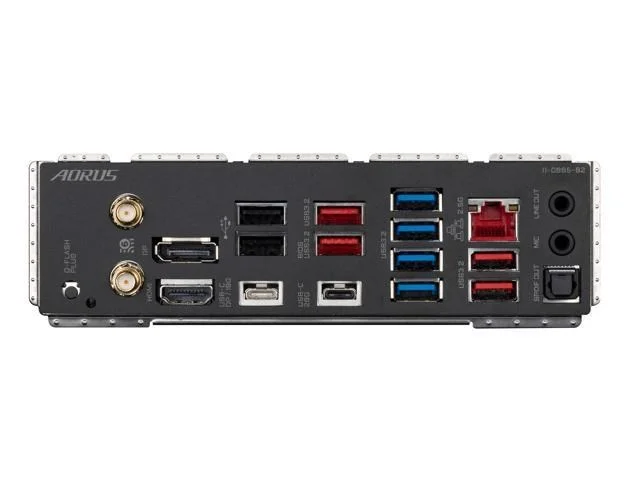

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X670E AORUS MASTER (rev. 1.0) |
| SKU Code | X670E AORUS MASTER (rev. 1.0) |
| GTIN / EAN | 889523033272 |
