Gigabyte X670E AORUS XTREME AM5 EATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

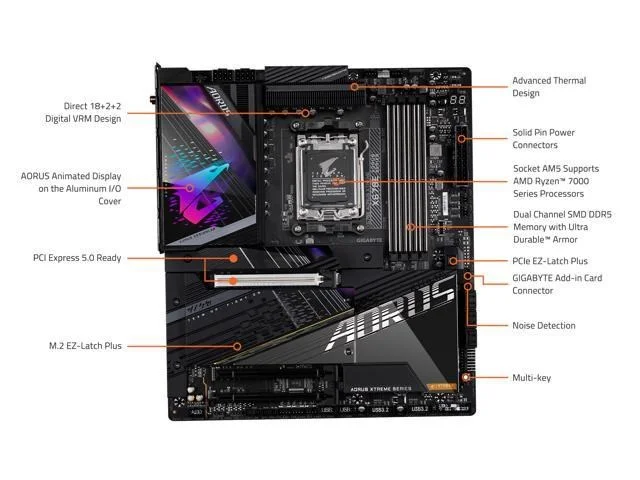

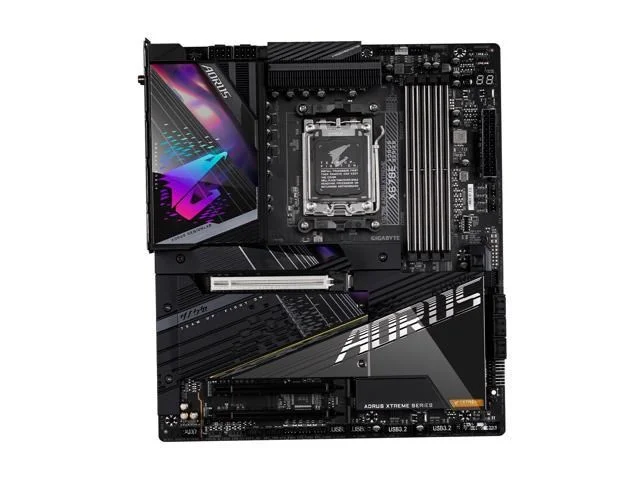

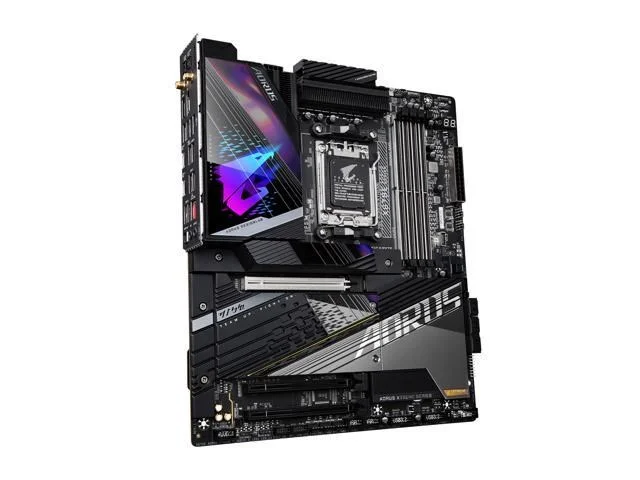

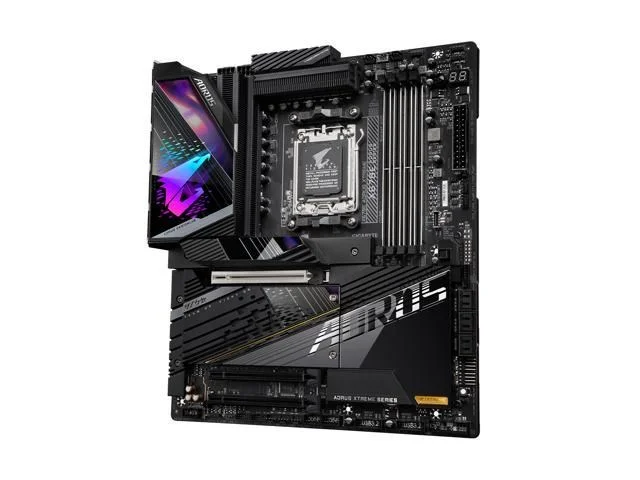

The Gigabyte X670E AORUS XTREME is a EATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

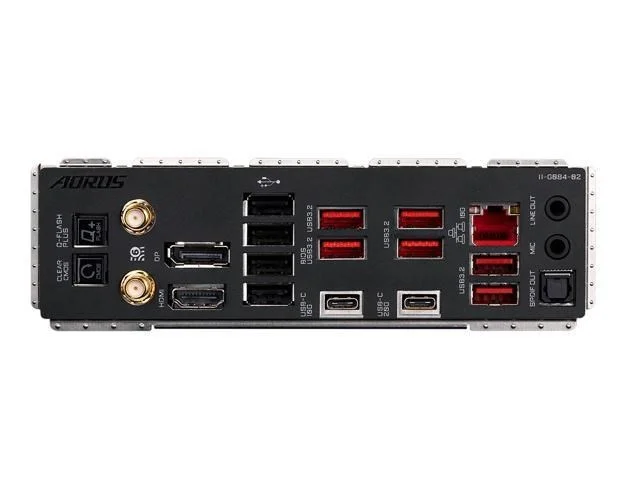

- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD X670Memory4 x DIMM, Max. 128GB, DDR5 5200MHz Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x HDMI port1 x DisplayPort 1.4PCI SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)StorageTotal supports 4 x M.2 slots and 6 x SATA 6Gb/s portsCPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support (M2B_CPU/M2C_CPU/M2D_CPU)Networking1 x 10Gb Ethernet WIFI 6EBluetoothAudioRealtek ALC1220-VB CODECConnectivity1 x Q-Flash Plus button1 x Clear CMOS button1 x DisplayPort1 x HDMI 2.0 port1 x USB Type-C port, with USB 3.2 Gen 2x2 support1 x USB Type-C port, with USB 3.2 Gen 2 support6 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksInternal Ports1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers4 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button1 x reset button2 x temperature sensor headers1 x reset jumper1 x Clear CMOS jumperVoltage Measurement PointsForm FactorE-ATX Form Factor; 30.5cm x 26.9cm
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | X670E AORUS XTREME (rev. 1.0) X670E AORUS XTREME |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X670E AORUS XTREME (rev. 1.0) |
| SKU Code | X670E AORUS XTREME (rev. 1.0) |
| GTIN / EAN | 889523033456 |
