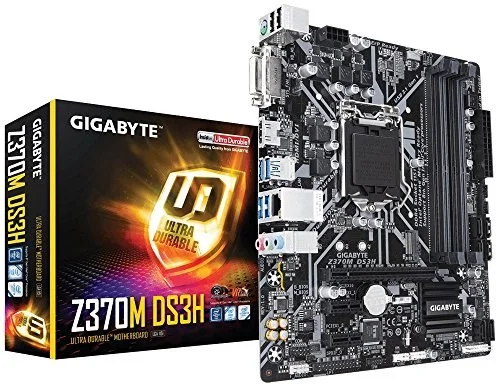

Gigabyte Z370M DS3H LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

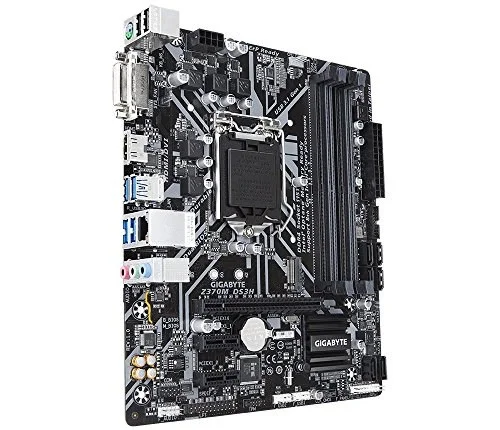

The Gigabyte Z370M DS3H is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 3866 MT/s (OC).
- Brand GIGABYTE, Model Z370M DS3H

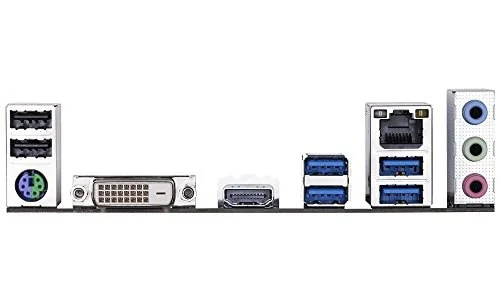

- CPU Socket Type LGA 1151 (300 Series), CPU Type Core i7 / i5 / i3 (8th Gen, LGA1151), Chipset Intel Z370, Onboard Video Chipset Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz,
- The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz, Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1GB,
- Number of Memory Slots 4×288pin, Memory Standard DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133, Maximum Memory Supported 64GB,
- Form Factor Micro ATX, Dimensions (W x L) 8.9" x 7.6", Power Pin 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector,
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z370M DS3H Z370M DS3H Rev. 1.0 |
| Launch Date | January 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z370 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z370M DS3H |
| SKU Code | Z370M DS3H |
| GTIN / EAN | 889523012215 |
