GIGABYTE Z390 UD LGA1151 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

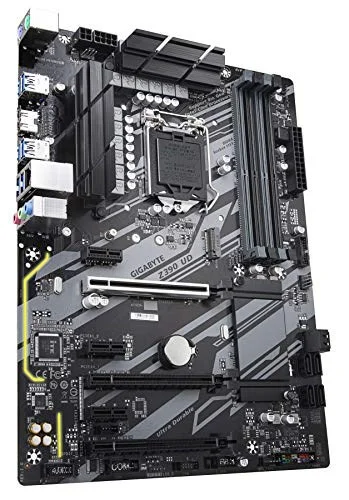

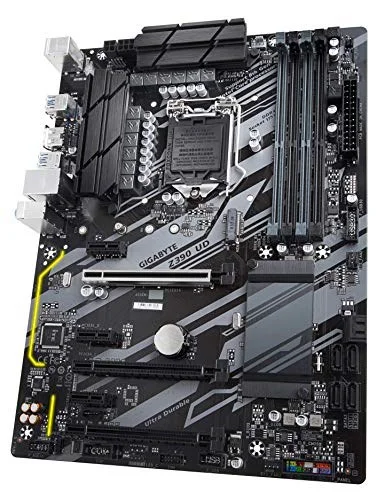

The GIGABYTE Z390 UD is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- Supports 9th and 8th Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- New 10+2 Phases Digital PWM Design
- NVMe PCIe Gen3 x4 22110 M.2 Connector
- Multi-Way Graphics Support with PCIe Armor and Ultra Durable Design
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Support RGB Light Strip in Full Colors
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Lightning-Fast Intel Thunderbolt 3 AIC Support
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z390 UD |
| Launch Date | October 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

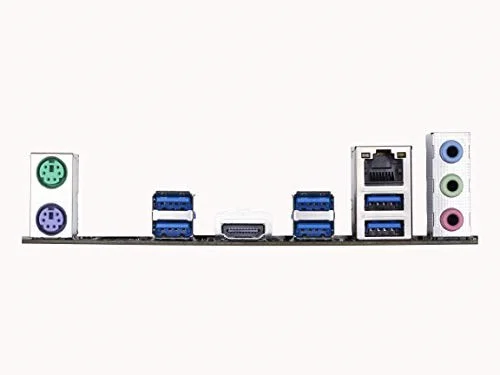

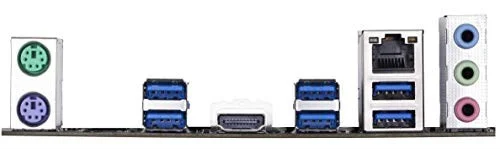

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z390 UD |
| SKU Code | Z390 UD |
| GTIN / EAN | 889523015032 |
