Description

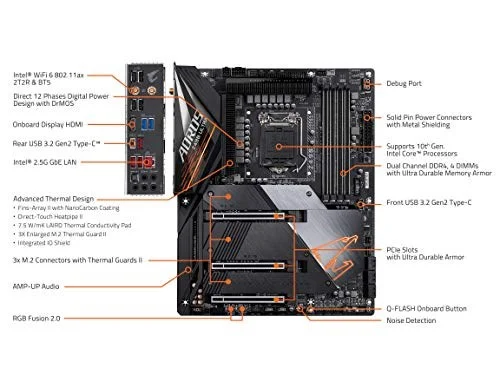

The Gigabyte Z490 AORUS ULTRA is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).
- Supports 10Th Gen Intel Core Processors
- Direct 12 Phases Digital VRM With 50A Smart Power Stage With Tantalum Polymer Capacitors Array
- Next Generations VRM Cooling Fins Array And Direct Touch Heatpipe With Nanocarbon Coating
- Shielded Xtreme Memory Design With Tantalum Polymer Capacitors Array
- Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
- Intel 2.5 Gbe LAN
- 3X M.2 AORUS Next Generation Thermal Guard
- Intel Wifi 6 And Bluetooth 5 2X2 With AORUS Antenna
- AMP UP Audio ALC1220-VB AUDIO DAC
- RGB Fusion 2.0
- Memory Storage Capacity: 10000 Tb
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z490 AORUS ULTRA |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z490 AORUS ULTRA |
| SKU Code | Z490 AORUS ULTRA |
| GTIN / EAN | 889523021415 |
