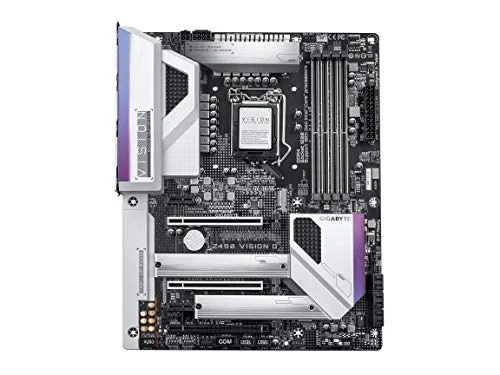

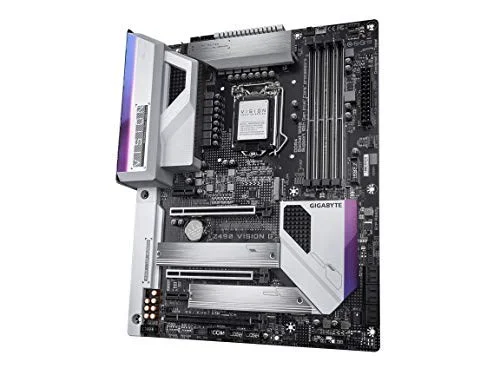

Gigabyte Z490 VISION G LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte Z490 VISION G is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).
- Supports 10Th Gen Intel Core Processors
- Direct 12 Phases Digital VRM With 50A Smart Power Stage
- Advanced Thermal Design With Micro-Block Surface Heatsink And Next Generation Direct Touch Heatpipe
- Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
- Intel 2.5 Gbe LAN
- 2X M.2 Thermal Guard
- Realtek ALC1220-VB2 120Db With Nichicon MW
- RGB Fusion 2.0
- Smart Fan 5 Hybrid Fan Headers With Smart Fan Functions (Fan Stop, PWM Controls, Noise Detection)
- Rear - 3USB 3.2 Gen2 (A), 1USB 3.2 Gen2 (C), 4USB 3.2 Gen1, 2USB 2.0
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z490 VISION G |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z490 VISION G |
| SKU Code | Z490 VISION G |
| GTIN / EAN | 889523021231 |
