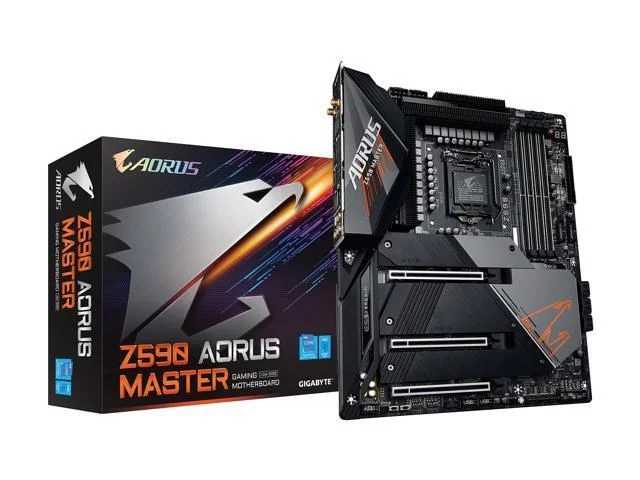

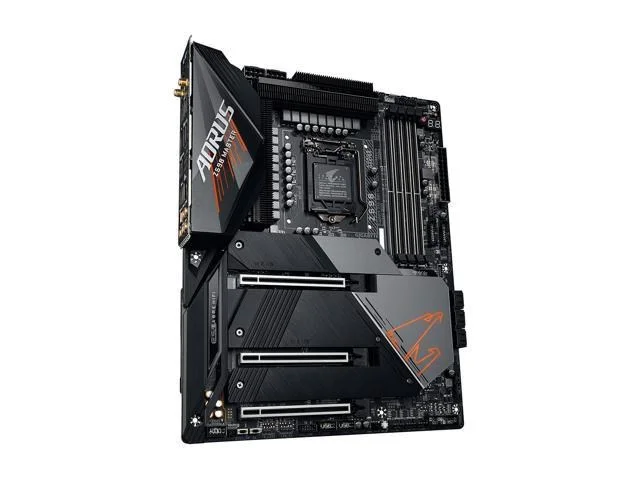

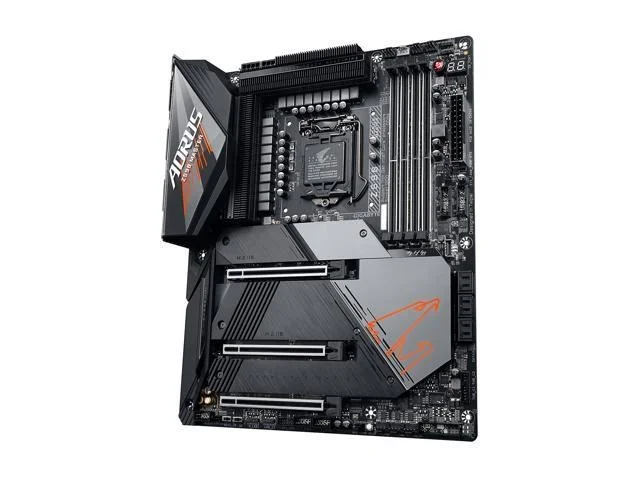

GIGABYTE Z590 AORUS MASTER LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE Z590 AORUS MASTER is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5400 MT/s (OC).

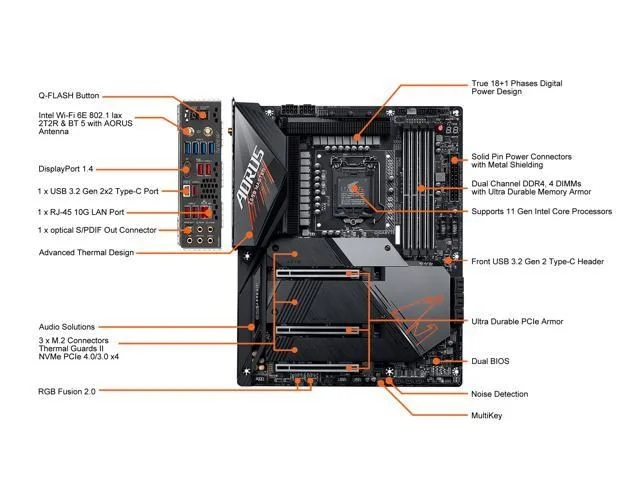

- Supports 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Intel Optane Memory Ready 18+1 Phases Digital VRM Solution with 90A Smart Power Stage Tantalum Polymer Capacitors Array Shielded Memory Routing to Avoid Interference Advanced Thermal Solution with Fins-Array II Direct Touch Heatpipe II and NanoCarbon Baseplate Onboard Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC AQUANTIA 10GbE BASE
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z590 AORUS MASTER |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 / DDR4-5400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only) |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

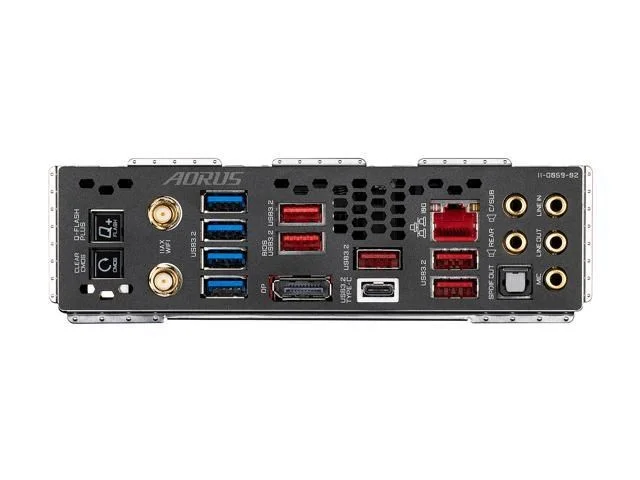

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 AORUS MASTER |
| SKU Code | Z590 AORUS MASTER |
| GTIN / EAN | 889523026472 |
