Description

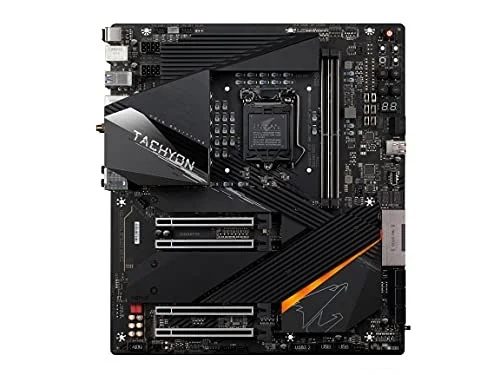

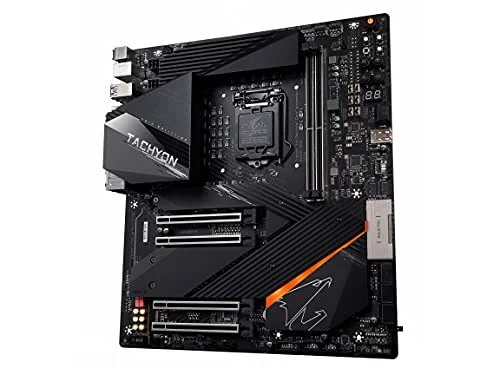

The Gigabyte Z590 AORUS TACHYON is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 12 Phases Digital VRM Solution with 100A DrMOS and Tantalum Polymer Capacitors Matrix
- XTREME MEMORY with 2-DIMM Design and Shielded Memory Routing
- Exclusive onboard Overclocking Kit for extreme overclocking
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z590 AORUS TACHYON |
| Launch Date | June 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5100 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2280 / 22110 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

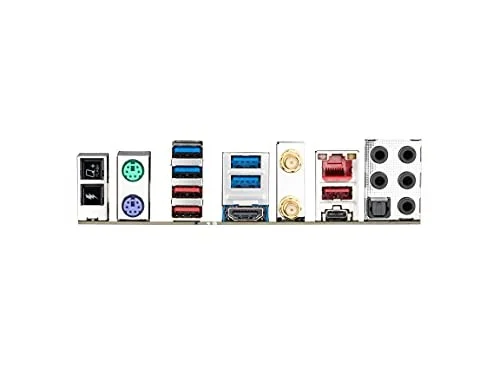

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 AORUS TACHYON |
| SKU Code | Z590 AORUS TACHYON |
| GTIN / EAN | 889523026410 |
