GIGABYTE Z590 AORUS XTREME LGA1200 EATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

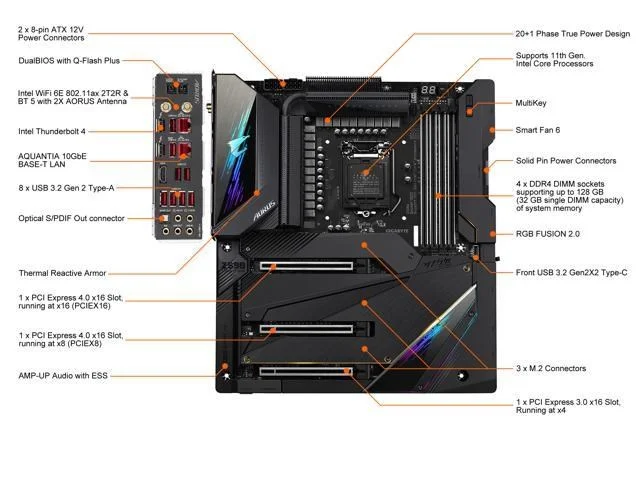

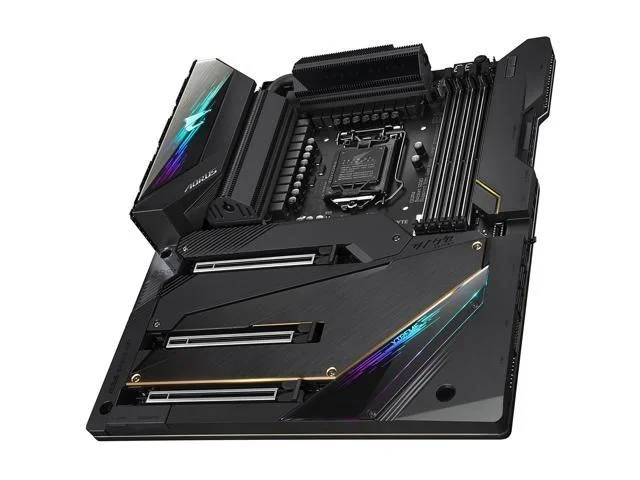

The GIGABYTE Z590 AORUS XTREME is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5400 MT/s (OC).
- Intel Z590 Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. DDR4 5400(OC) / 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC)/ 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 /
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z590 AORUS XTREME |
| Launch Date | March 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4200 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5133 / DDR4-5333 / DDR4-5400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only) |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 AORUS XTREME |
| SKU Code | Z590 AORUS XTREME |
| GTIN / EAN | 889523027172 |
Price History (last 12 months)
Plots available price points within the past 12 months.
