Description
The GIGABYTE Z590 UD is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).

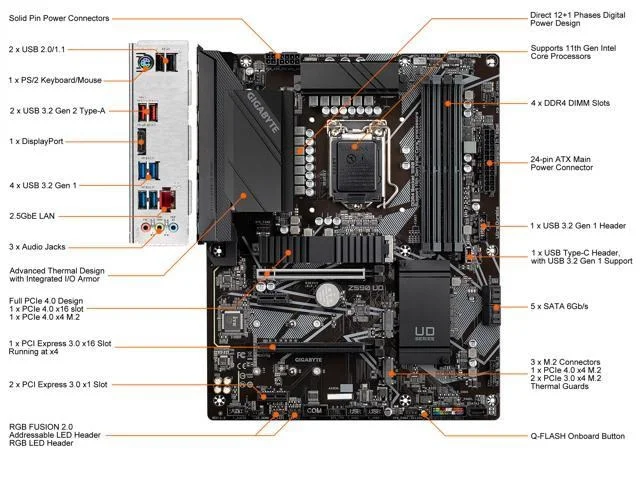

- Supports 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 12+1 Phases Digital VRM Solution with 50A DrMOS Shielded Memory Routing for Better Memory Overclocking Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact Fast 2.5GbE LAN with Bandwidth Management Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard USB 3.2 Gen2 and Front USB Type-C for Fast and Versatile Connections Pre-installed IO Shield for Easy and Quic
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z590 UD |
| Launch Date | March 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key (Intel 11th Gen only) |
| SATA III Ports | 5 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 UD |
| SKU Code | Z590 UD |
| GTIN / EAN | 889523026571 |
