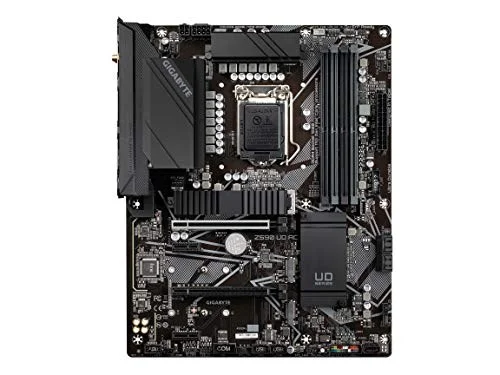

GIGABYTE Z590 UD AC LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE Z590 UD AC is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).
- Supports 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 12+1 Phases Digital VRM Solution with 50A DrMOS Shielded Memory Routing for Better Memory Overclocking Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact Fast 2.5GbE LAN with Bandwidth Management Onboard Intel 802.11ac Wireless & BT with High-Gain Antenna Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard USB 3.2 Gen2 and Front USB Type-C for Fast and Ver
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z590 UD AC |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 5 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 UD AC |
| SKU Code | Z590 UD AC |
| GTIN / EAN | 889523026595 |
