Description

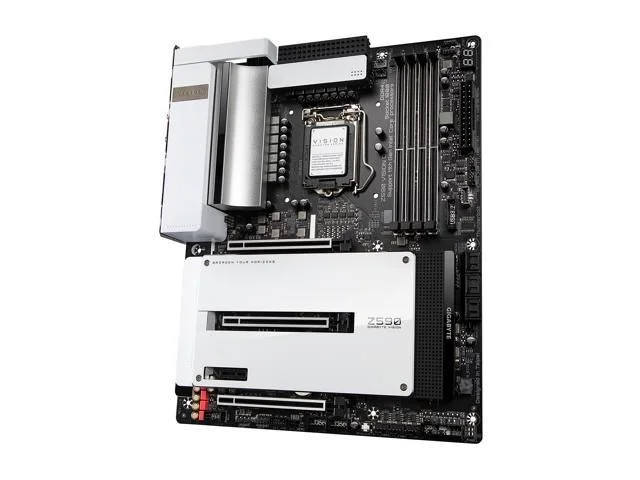

The GIGABYTE Z590 VISION D is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).
- Powerful performance support 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs Go further without more cables by VisionLINK TB I/O design The limitless connectivity by Thunderbolt 4 High-bandwidth and low-latency network support by dual Intel 2.5GbE LAN Intel Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal SuperSpeed USB 3.2 Gen2x2 Type-C Header Triple Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards Comprehen
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z590 VISION D |
| Launch Date | March 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4200 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key (Intel 11th Gen only) |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

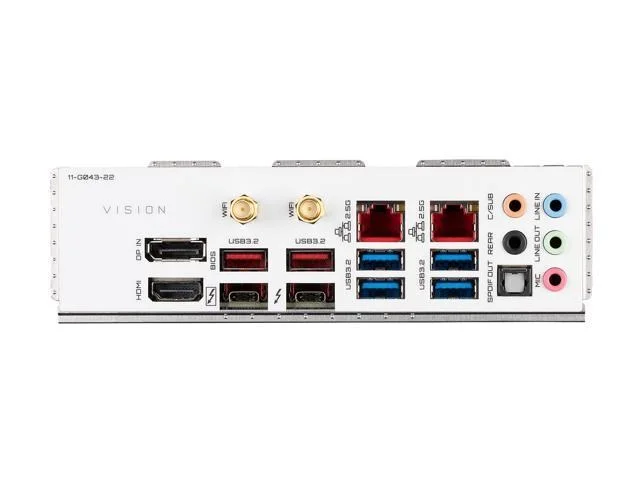

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590 VISION D |
| SKU Code | Z590 VISION D |
| GTIN / EAN | 889523027431 |
