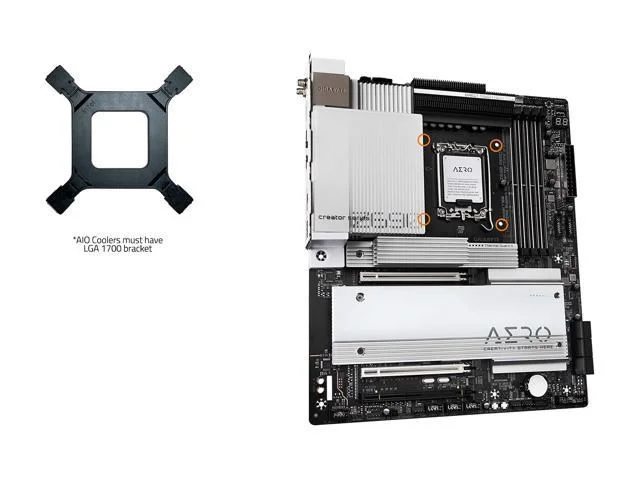

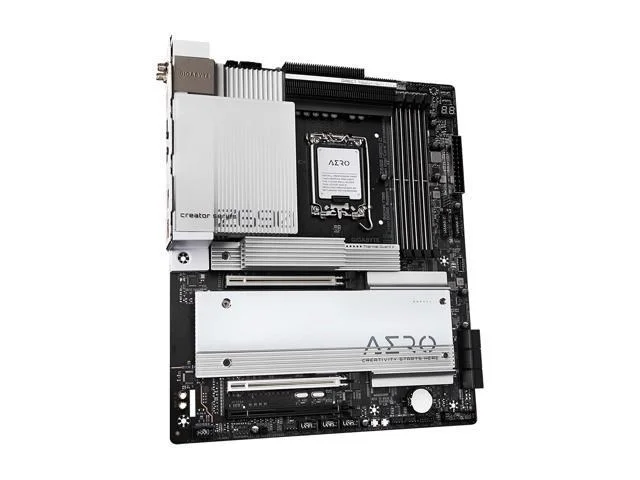

Gigabyte Z690 AERO D LGA1700 EATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte Z690 AERO D is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- GIGABYTE Z690 AERO D LGA 1700 Intel Z690 Extended ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, AQUANTIA 10GbE LAN Memory Standard: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 Number of Memory Slots: 4×288pin (DDR5) Audio Chipset: Realtek ALC4080 codec (rear panel audio) Realtek ALC897 codec (front panel audio) PCI Express 5.0 x16: 2 x PCI Express 5.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Running at x4. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10Gbps + 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processo…
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z690 AERO D |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

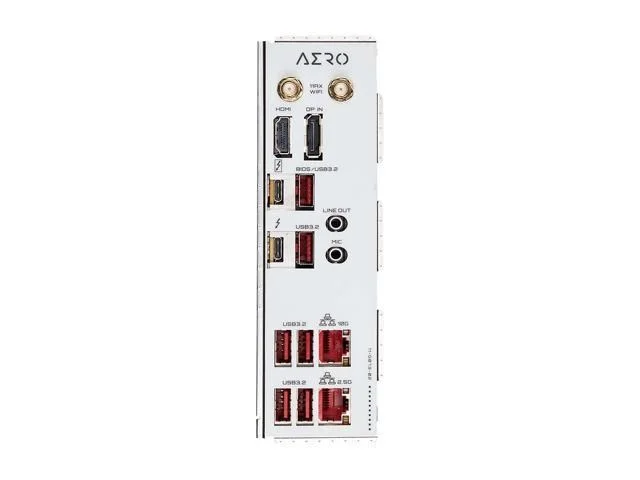

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690 AERO D |
| SKU Code | Z690 AERO D |
| GTIN / EAN | 4719331828462 |
