Gigabyte Z690 AERO G DDR4 LGA1700 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

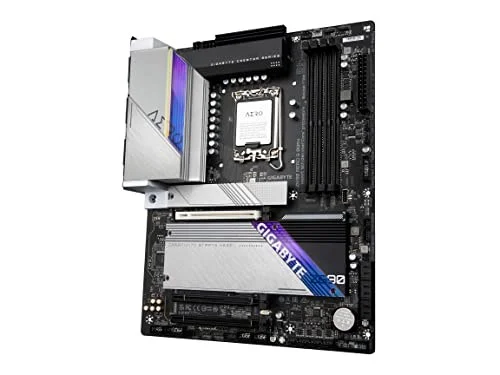

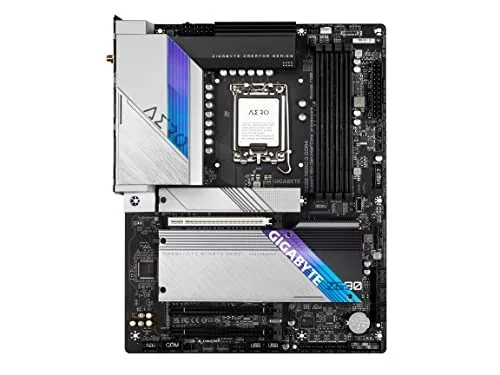

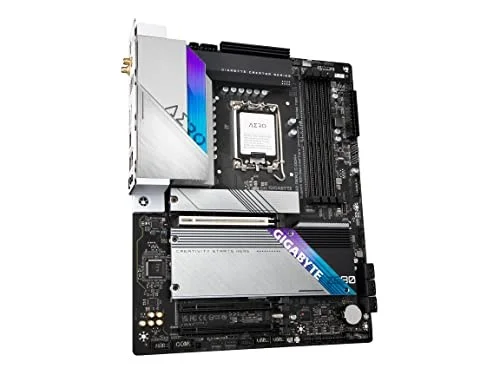

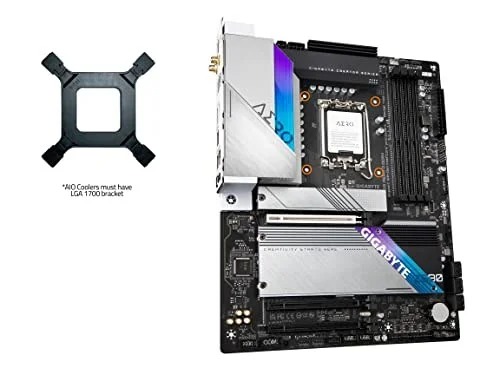

The Gigabyte Z690 AERO G DDR4 is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).
- Intel LGA 1700 Socket: Supports 12Th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4
- Sturdy Power Design
- Comprehensive Thermal Design: Advanced Thermal Architecture, Enlarged Thermal Guards
- Next Gen Connectivity: Pcie 5.0, Visionlink I/O , Quad Nvme Pcie 4.0 X4 M.2, Superspeed USB 3.2 Gen 2X2 Type-C
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z690 AERO G DDR4 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690 AERO G DDR4 |
| SKU Code | Z690 AERO G DDR4 |
| GTIN / EAN | 889523030011 |
