Gigabyte Z690 AORUS MASTER LGA1700 EATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

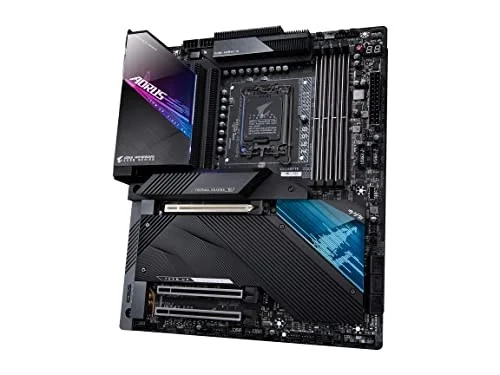

The Gigabyte Z690 AORUS MASTER is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- Intel LGA 1700 Socket: Supports 12Th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
- Commanding Power Design: 19+1+2 Phases Direct VRM Design With 105A Power Stage With Tantalum Polymer Capacitors
- Cutting-Edge Thermal Design: Thermal Reactive Armor With Nanocarbon Fins-Array III, Heatsink
- Direct Touch Heatpipe II, Nanocarbon Baseplate, Thermal Guards XTREME
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z690 AORUS MASTER |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

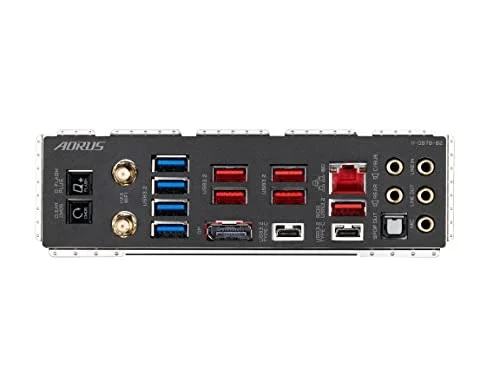

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690 AORUS MASTER |
| SKU Code | Z690 AORUS MASTER |
| GTIN / EAN | 889523030035 |
