Gigabyte Z690I AORUS ULTRA LITE (rev. 1.0) LGA1700 Mini-ITX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£39.26 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

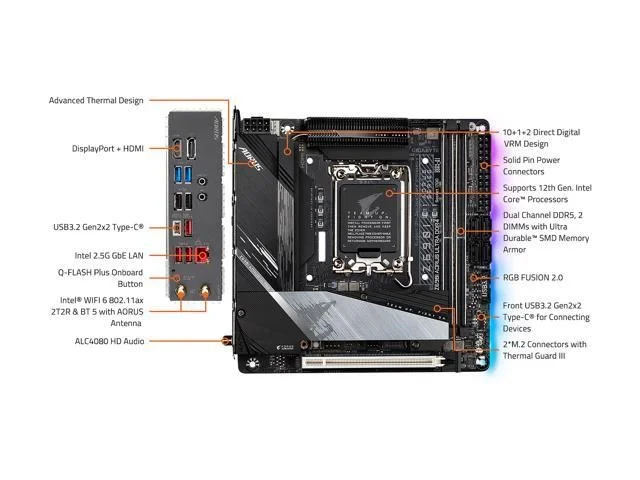

The Gigabyte Z690I AORUS ULTRA LITE (rev. 1.0) is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).
- Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing
- Intel Optane Memory Ready
- Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage
- Advanced Thermal Design with Fins- Array II, Thermal Guard III and Heatpipe
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Intel WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z690I AORUS ULTRA LITE Z690I AORUS ULTRA LITE (rev. 1.0) |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

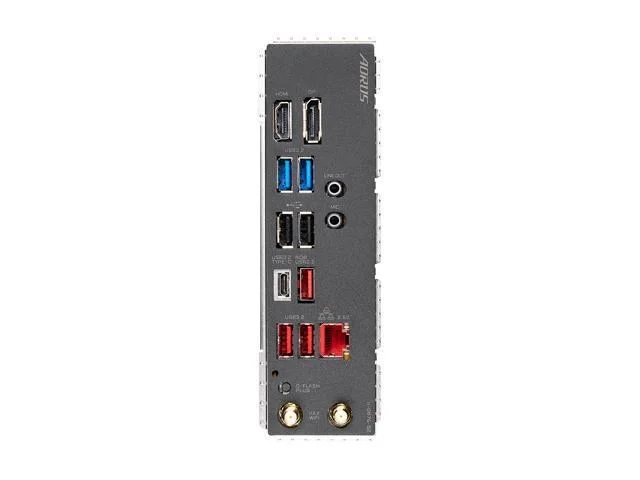

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690I AORUS ULTRA LITE |
| SKU Code | Z690I AORUS ULTRA LITE |
| GTIN / EAN | 889523032794 |
