GIGABYTE Z690I AORUS Ultra Plus LGA1700 Mini-ITX DDR5 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

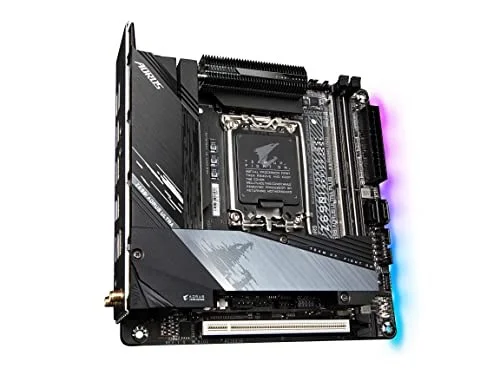

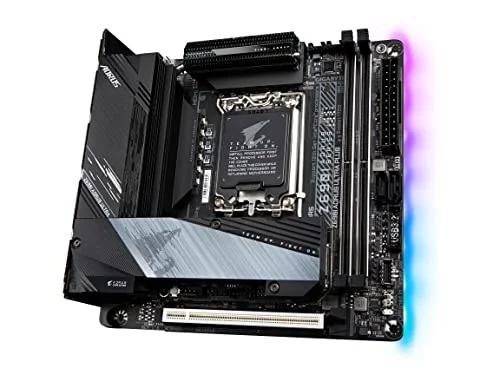

The GIGABYTE Z690I AORUS Ultra Plus is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMS
- Commanding Power Design: 10+2+1 Phases Digital VRM Solution with 105A Power Stage, 12-Layer PCB
- Cutting-Edge Thermal Design: Advanced Thermal Solution with Fins Array II and Thermal Guards III
- Next Gen Connectivity: PCIe 5.0, Dual NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
- Fast Networking: Intel WiFi 6E DCT 802.11ax, Intel 2.5GbE LAN, BT5
- Dynamic Audio: AMP-UP Audio with ALC4080 and WIMA
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
- Only Compatible with Intel LGA1700 Cooling Brackets
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z690I AORUS ULTRA PLUS Z690I AORUS ULTRA PLUS (rev. 1.0) |
| Launch Date | May 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

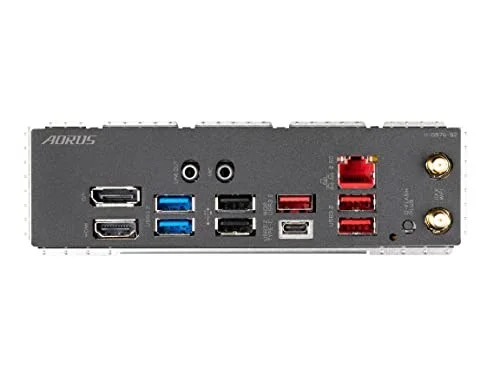

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690I AORUS ULTRA PLUS |
| SKU Code | Z690I AORUS ULTRA PLUS |
| GTIN / EAN | 889523032589 |
