Gigabyte Z690I AORUS ULTRA PLUS DDR4 LGA1700 Mini-ITX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

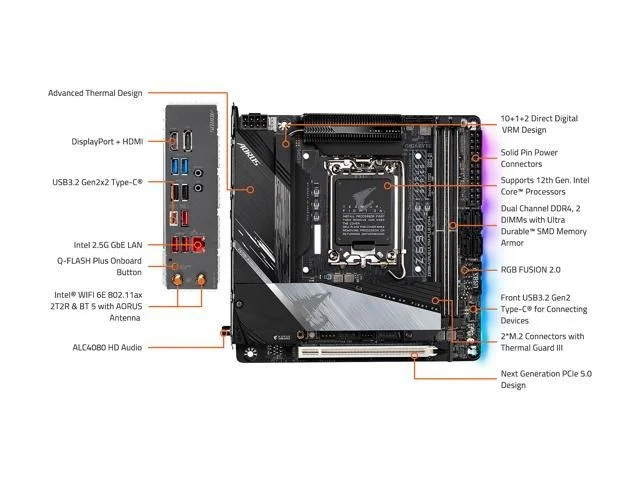

The Gigabyte Z690I AORUS ULTRA PLUS DDR4 is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 3200 MT/s (OC).
- GIGABYTE Z690I AORUS ULTRA PLUS DDR4 LGA 1700 Intel Z690 Mini ITX Intel Motherboard Number of Memory Slots: 2x288pin (DDR4) Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Core / Pentium / Celeron (12th Gen, LGA1700) Channel Supported: Dual Channel M.2: 2 x M.2 Wireless LAN: Intel WiFi 6E LED Lighting: RGB
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z690I AORUS ULTRA PLUS DDR4 Z690I AORUS ULTRA PLUS DDR4 (rev. 1.0) |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690I AORUS ULTRA PLUS DDR4 |
| SKU Code | Z690I AORUS ULTRA PLUS DDR4 |
| GTIN / EAN | 889523032657 |
