Description

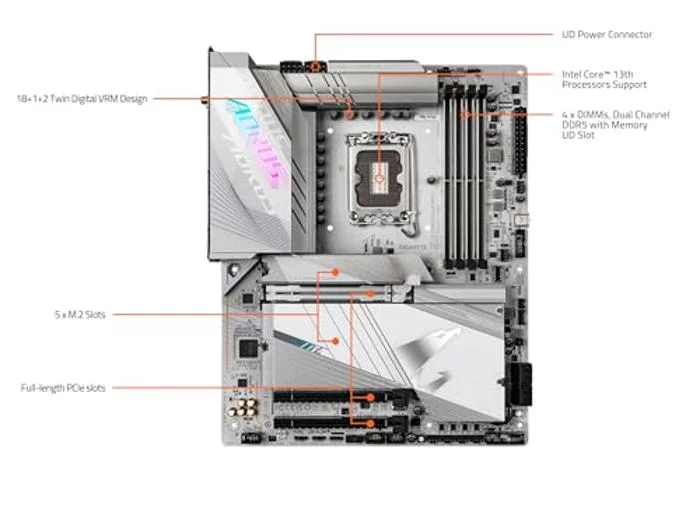

The GIGABYTE Z790 AORUS PRO X is a ATX motherboard for LGA1700. It supports DDR5 memory up to 8266 MT/s (OC).
- Intel LGA 1700 Socket: Supports 13th and next-gen processors
- Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
- Commanding Power Design: Twin 18+1+2 Phases Digital VRM Solution
- Cutting-Edge Thermal Design: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Ultra-Fast Storage: 5M.2 slots, including 1 PCIe 5.0 x4
- Fast Networks: 5GbE LAN & Wi-Fi 7
- Extended Connectivity: PCIe 5.0, DP, HDMI, Front & Rear USB-C 20Gb/s
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z790 AORUS PRO X |
| Launch Date | September 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

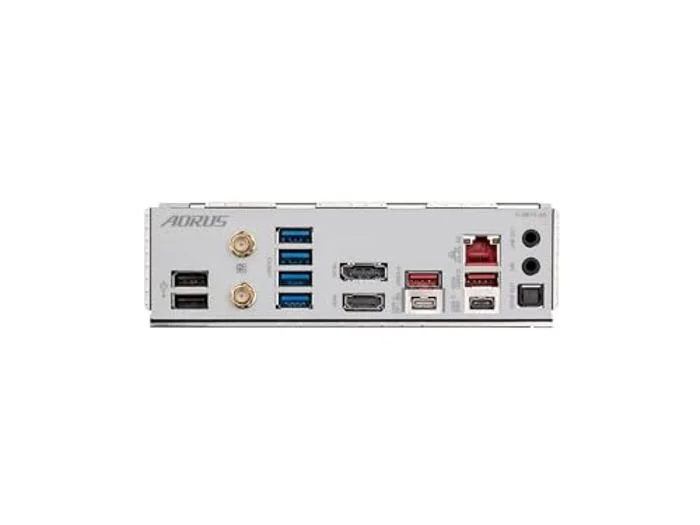

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z790 AORUS PRO X |
| SKU Code | Z790 AORUS PRO X |
| GTIN / EAN | 889523039403 |
