Description

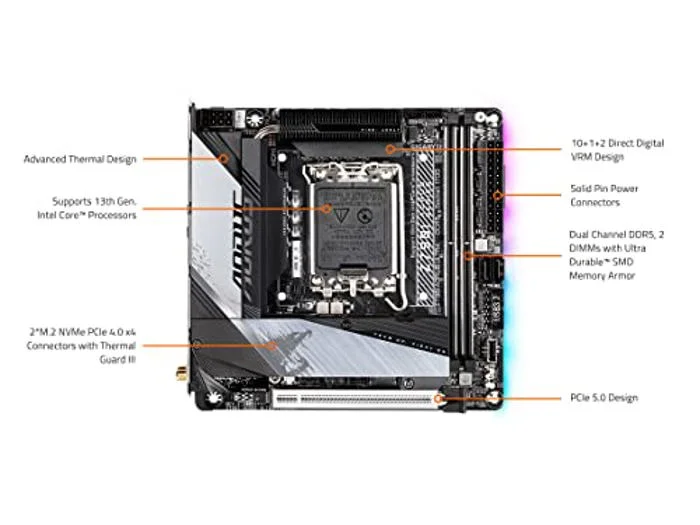

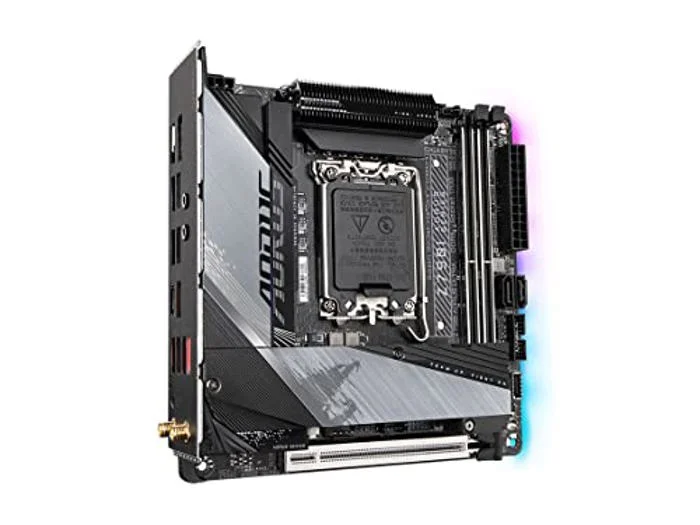

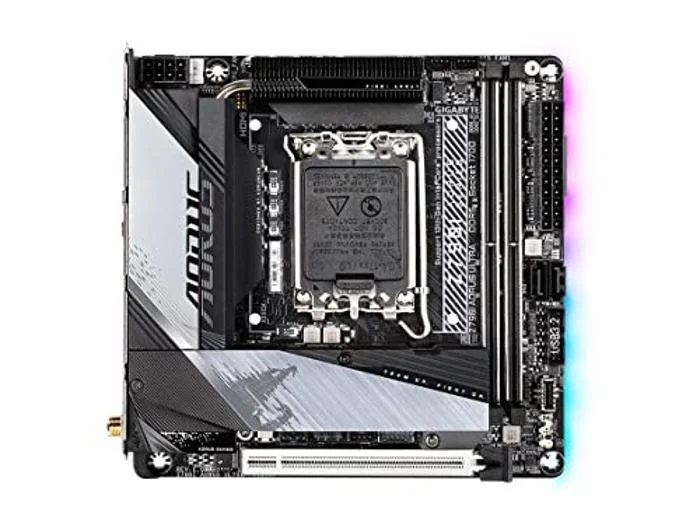

The GIGABYTE Z790I AORUS Ultra is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).
- Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel DDR5
- Commanding Power Design: 10+1+2 Direct Digital VRM Solution with 105A Smart Power Stage
- Cutting-Edge Thermal Design: Thermal Guard III, Fins Array II, 2X Copper PCB, Ultra Durable SMD Memory Armor
- Next Gen Connectivity: PCIe 5.0, 2* PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C
- Fast Networking: Intel 2.5GbE LAN, Intel Killer WiFi 6E 802.11ax
- Dynamic Audio: Realtek ALC 4080 Audio
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | Z790I AORUS ULTRA |
| Launch Date | March 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 96 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2280 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

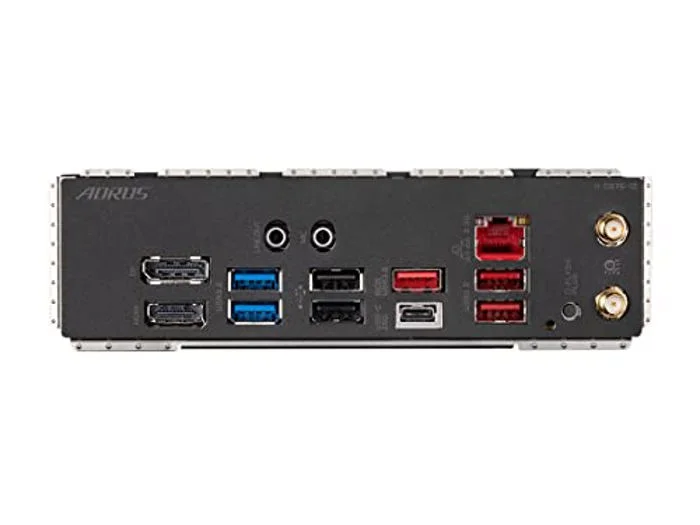

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z790I AORUS ULTRA |
| SKU Code | Z790I AORUS ULTRA |
| GTIN / EAN | 889523036952 |
