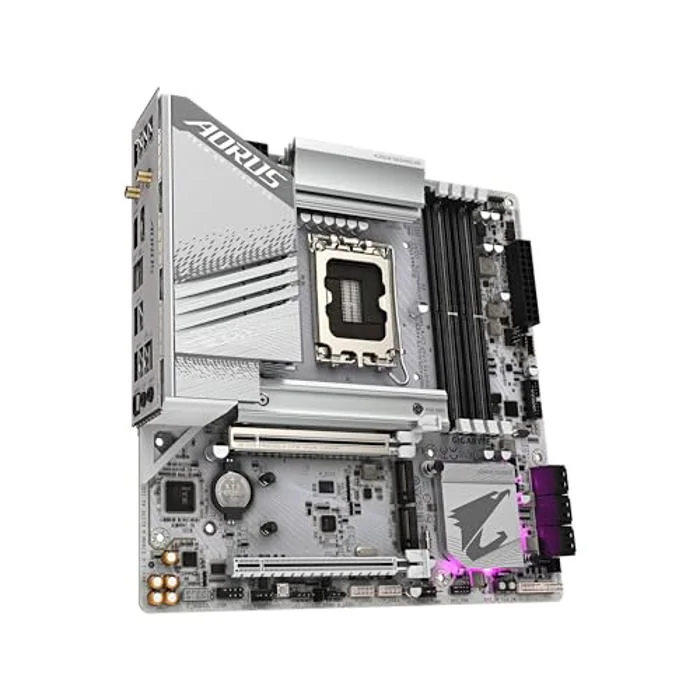

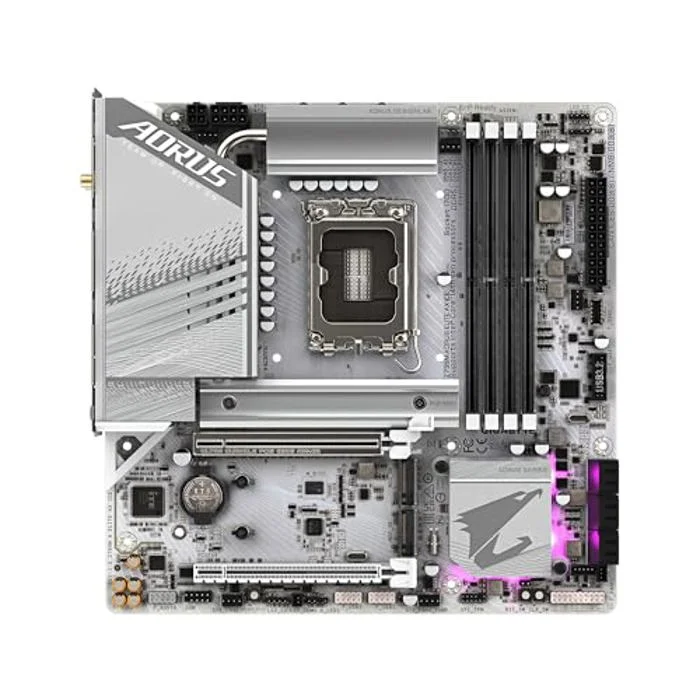

GIGABYTE Z790M AORUS Elite AX ICE LGA1700 Micro-ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE Z790M AORUS Elite AX ICE is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7600 MT/s (OC).

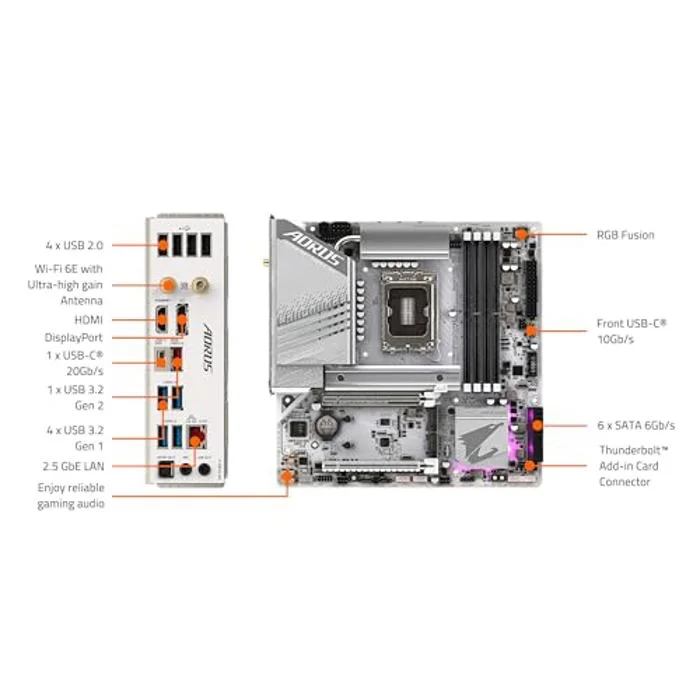

- Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel DDR5
- Commanding Power Design: Twin 12+1+1 Phases Digital VRM Solution
- Cutting-Edge Thermal Design: M.2 Thermal Guard, Advanced Thermal Design, 6-Layer PCB
- Next Gen Connectivity:3*PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
- EZ-Latch: M.2 connectors with a Quick Release & Screwless Design
- Fast Networking: 2.5GbE LAN, Intel WiFi 6E
- Fine Tuning Features: Smart Fan 6, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z790M AORUS ELITE AX ICE |
| Launch Date | April 2024 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

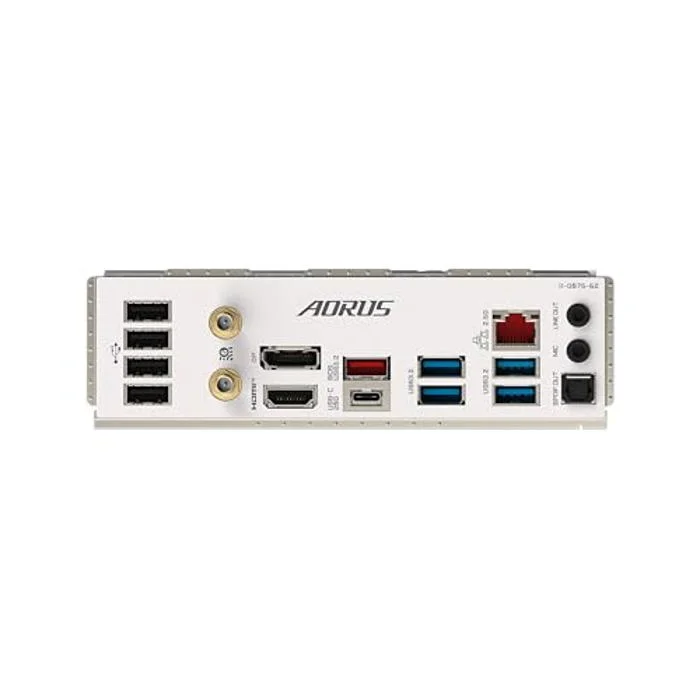

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z790M AORUS ELITE AX ICE |
| SKU Code | Z790M AORUS ELITE AX ICE |
| GTIN / EAN | 889523041857 |
Price History (last 12 months)
Plots available price points within the past 12 months.
