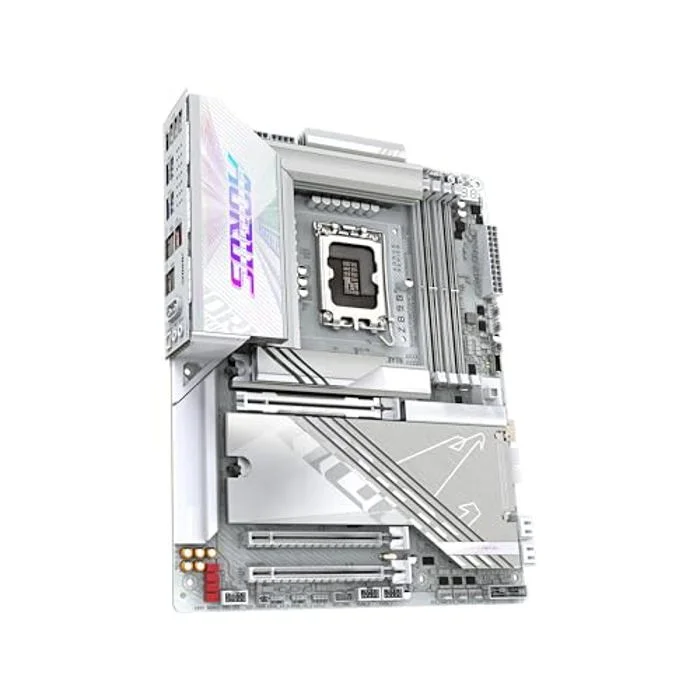

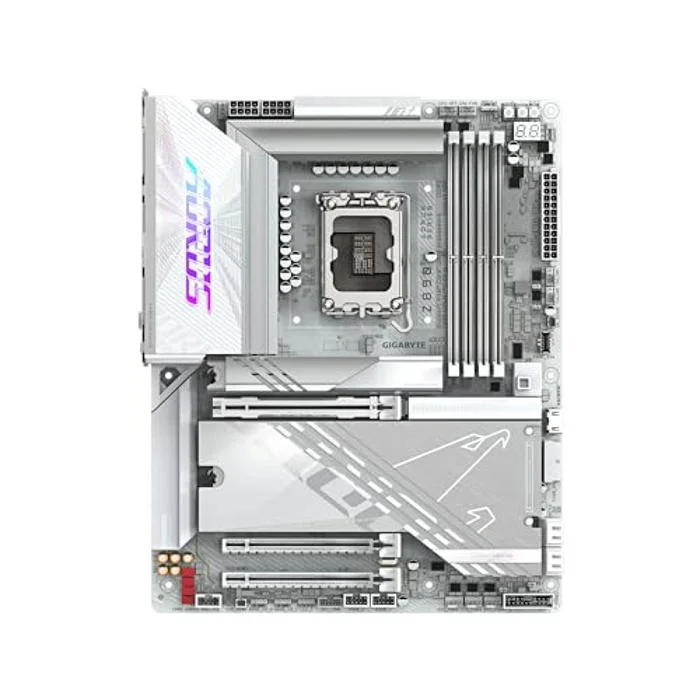

GIGABYTE Z890 AORUS PRO ICE LGA1851 ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE Z890 AORUS PRO ICE is a ATX motherboard for LGA1851. It supports DDR5 memory up to 9500 MT/s (OC).
- Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
- Power Design: 16+1+2, 90A Smart Power Stage
- Thermals: VRM Thermal Armor and M.2 Thermal Guard
- Connectivity: PCIe 5.0, 5x M.2 Slots, Dual Thunderbolt 4, Front USB-C, Sensor Panel Link
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | Z890 AORUS PRO ICE |
| Launch Date | October 2024 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel Z890 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 / DDR5-8400 / DDR5-8600 / DDR5-8800 / DDR5-8933 / DDR5-9066 / DDR5-9200 / DDR5-9333 / DDR5-9466 / DDR5-9500 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

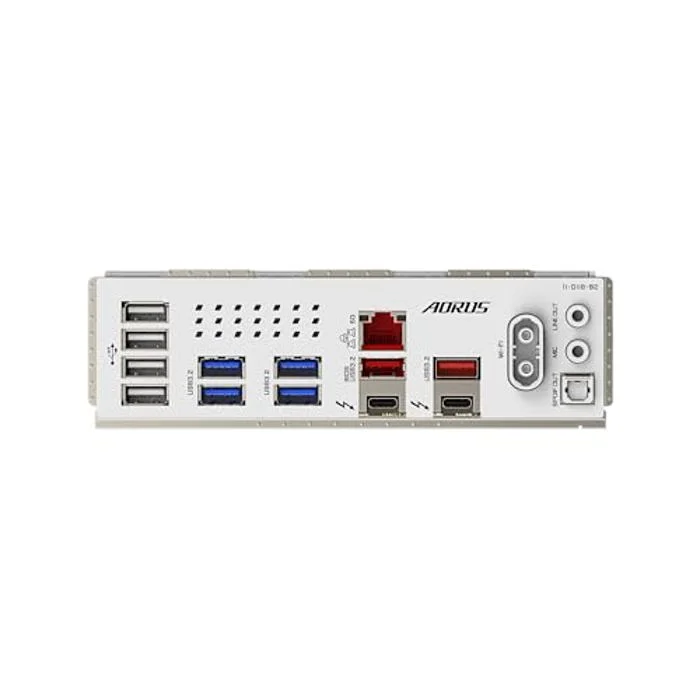

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z890 AORUS PRO ICE |
| SKU Code | Z890 AORUS PRO ICE |
| GTIN / EAN | 889523045084 |
