Intel BOXDH61CRB3 LGA1155 Micro-ATX DDR3 8 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

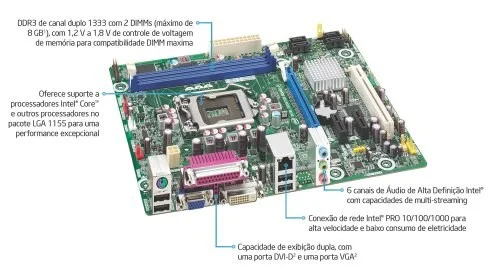

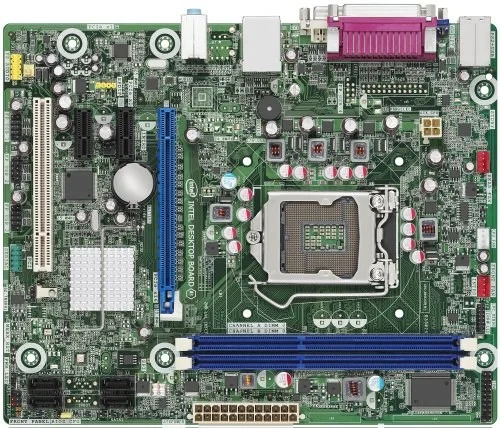

The Intel BOXDH61CRB3 is a Micro-ATX motherboard for LGA1155. It supports DDR3 memory up to 1600 MT/s (OC).
- CPU: Socket 1155 Support 2nd Generation Intel Core i7/i5/i3 Series Processors
- Chipset: Intel H61 Express Chipset
- Memory: 2x 240pin DDR3-1333/1066/800 DIMMs, Dual/Single Channel, Non-ECC, Max Capacity upto 8GB
- Slots: 1x PCI-Express 2.0 x16 Slot; 2x PCI-Express 2.0 x1 Slots; 1x PCI Slot
- SATA: 4x SATA2 Ports

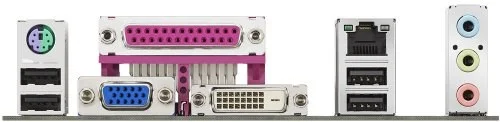

- Ports: 10x USB 2.0 Ports (4 rear, 6 by headers); 1x PS/2 Port; 1x VGA Port; 1x DVI Port; 1x Parallel Port; 1x RJ45 Port; Audio I/O Jacks
Specifications
| Manufacturer | Intel |
|---|---|
| Model Number | BOXDH61CRB3 |
| Launch Date | January 2012 |
| CPU Socket | LGA1155 |
| Chipset Model | Intel H61 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 8 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 0 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | BOXDH61CRB3 |
| SKU Code | BOXDH61CRB3 |
| GTIN / EAN | 735858220880 |
