Description

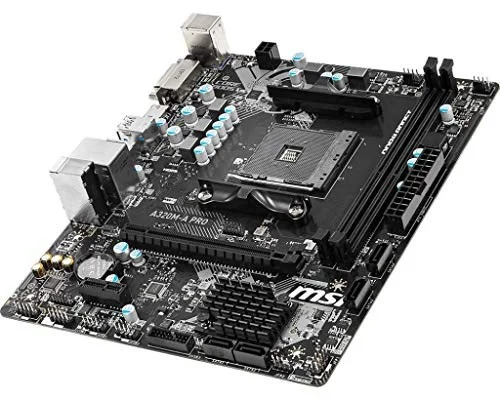

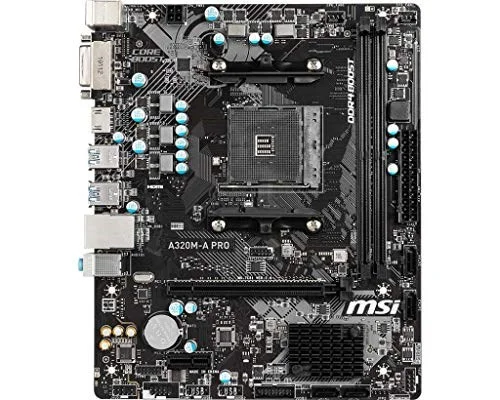

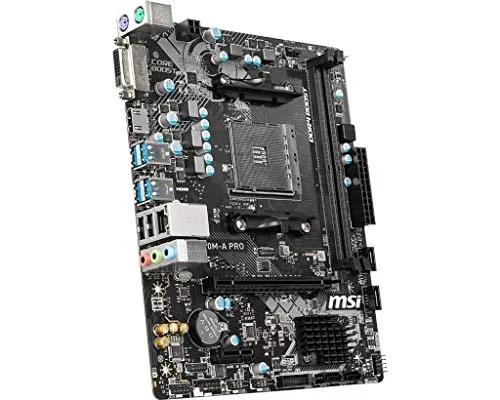

The MSI A320M-A PRO is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 1St, 2Nd And 3Rd Gen AMD Ryzen For Socket AM4
- Audio Boost: Reward Your Ears With Studio Grade Sound Quality.
- Supports DDR4 Memory, Up To 3200 (OC) Mhz
- DDR4 Boost: Advanced Technology To Deliver Pure Data Signals For The Best Performance And Stability
- Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provide Better Performance
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | A320M-A PRO 7C51-001R |
| Launch Date | January 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A320 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A320M-A PRO |
| SKU Code | A320M-A PRO |
| GTIN / EAN | 824142193891 |
