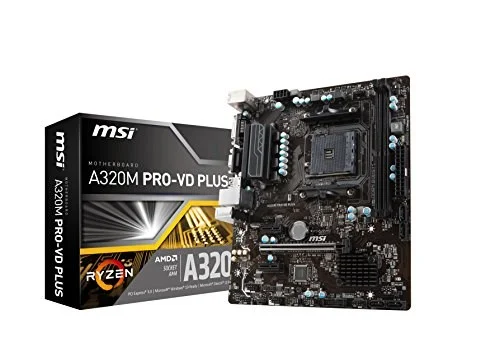

MSI A320M PRO-VD PLUS AM4 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI A320M PRO-VD PLUS is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports AMD RYZEN series processors and 7th Gen A-series / Athlon Processors for socket AM4
- Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz
- DDR4 Boost: Give your DDR4 memory a performance boost
- VR Ready: Best virtual reality game experience without latency
- Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
- EZ Debug LED: Easiest way to troubleshoot
- X-Boost: Great tool to boost your USB & Storage performance
- Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
- WHQL certified for Windows 10
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | A320M PRO-VD PLUS |
| Launch Date | August 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A320 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

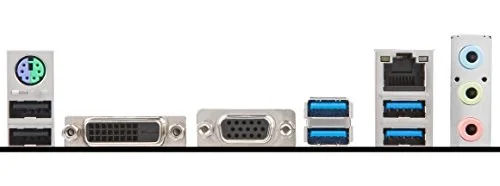

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A320M PRO-VD PLUS |
| SKU Code | A320M PRO-VD PLUS |
| GTIN / EAN | 824142149607 |
Price History (last 12 months)
Plots available price points within the past 12 months.
