Description

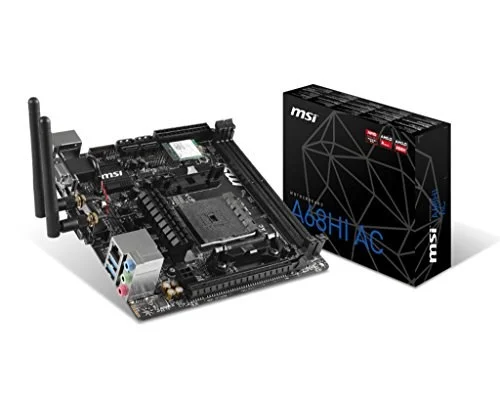

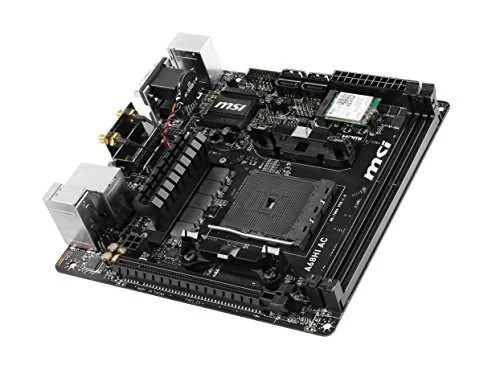

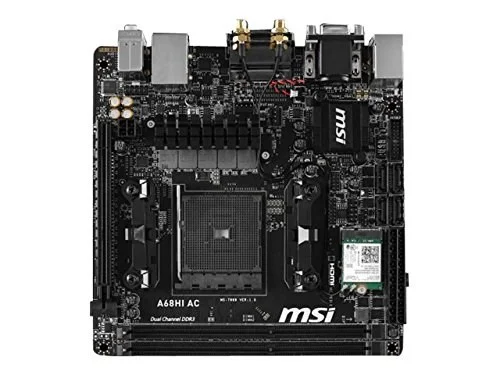

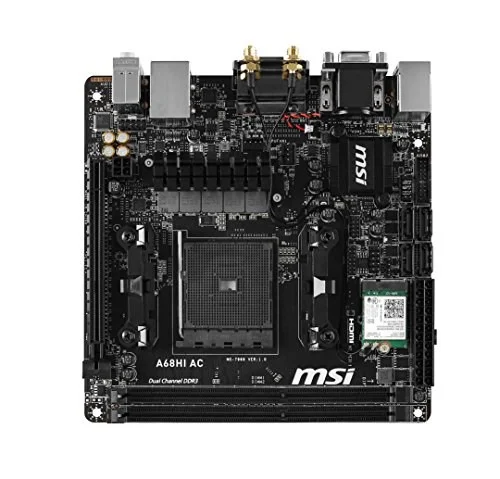

The MSI A68HI AC is a Mini-ITX motherboard for FM2+. It supports DDR3 memory up to 2133 MT/s (OC).
- Socket FM2+ for A-series/Athlon processors
- AMD A68H chipset
- Mini-ITX
- 1 PCI-E x16 3.0

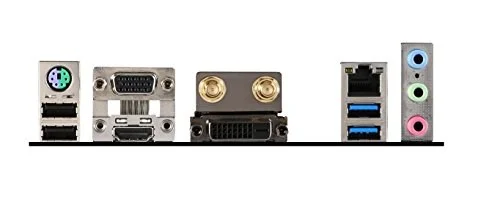

- 1 VGA, 1 DVI and 1 HDMI
- Military Class 4 Components
- Military Class Essentials
- Click BIOS 4
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | A68HI AC |
| Launch Date | |
| CPU Socket | FM2+ |
| Chipset Model | Intel A68H |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A68HI AC |
| SKU Code | A68HI AC |
| GTIN / EAN | 824142116739 |
