Description
The MSI B350 TOMAHAWK PLUS is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports AMD RYZEN Series Processors and 7th Gen A-series/Athlon processors for Socket AM4
- 64GB Supports DDR4 2667/2400/2133 MHz
- Military Class 4, Guard-Pro
- Multi GPU support with Steel Armor PCI-E slots
- Gaming LAN with LAN Protect
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B350 TOMAHAWK PLUS |
| Launch Date | August 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B350 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

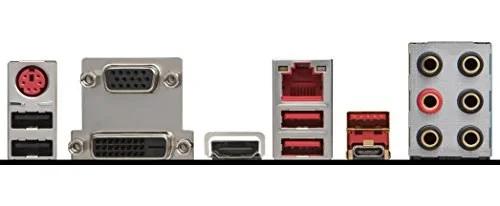

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B350 TOMAHAWK PLUS |
| SKU Code | B350 TOMAHAWK PLUS |
| GTIN / EAN | 824142151594 |
