MSI B360-A PRO LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI B360-A PRO is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- Brand MSI , Model B360APRO
- Product Type: Desktop Motherboard, Chipset Manufacturer: Intel, Total Processor Supported: 1, Processor Socket: Socket H4 LGA-1151, Processor Supported: Core i7,
- Processor Supported: Pentium Gold, Processor Supported: Core i5, Processor Supported: Celeron, Processor Supported: Core i3,
- Number of Memory Slots: 4, Memory Form Factor: UDIMM, Memory Form Factor: DIMM, Maximum Memory: 64 GB, Memory Technology: DDR4 SDRAM, Memory Speed Supported: 2.67 GHz,
- Memory Speed Supported: 2.13 GHz, Memory Speed Supported: 2.40 GHz, Intel Optane Memory Ready: Yes, Controller Type: Serial ATA/600, Onboard Video: CPU Dependent Video,
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B360-A PRO |
| Launch Date | May 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B360 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 5 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

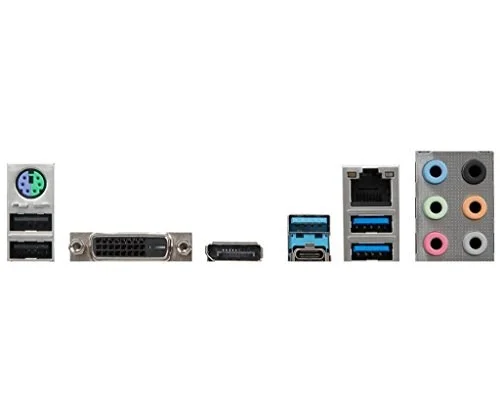

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B360-A PRO |
| SKU Code | B360-A PRO |
| GTIN / EAN | 824142159170 |
Price History (last 12 months)
Plots available price points within the past 12 months.
