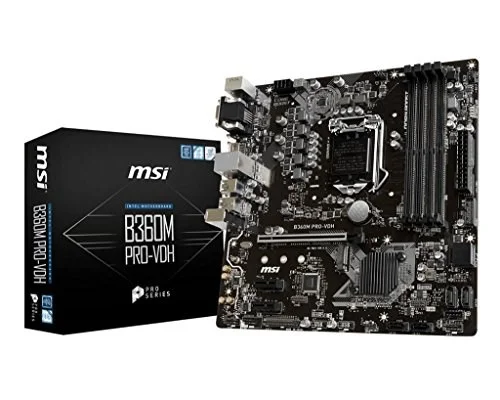

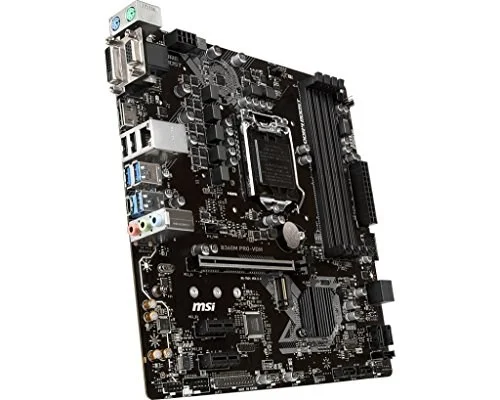

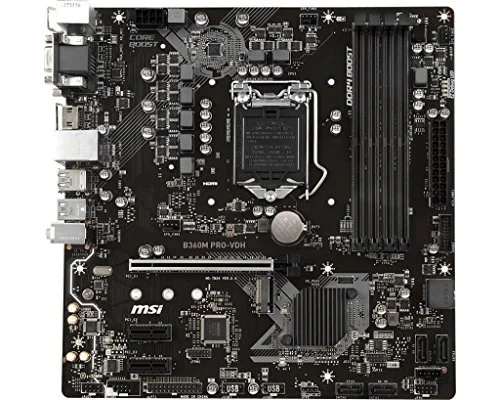

MSI B360M PRO-VDH LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI B360M PRO-VDH is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- Supports 8th Gen Intel Core/Pentium Gold/Celeron Processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- Multi-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire
- Double ESD Protection: Double layer grounding motherboard mounting holes
- Core Boost : With premium layout and fully digital power design to support more cores and provide better performance
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B360M PRO-VDH |
| Launch Date | May 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B360 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

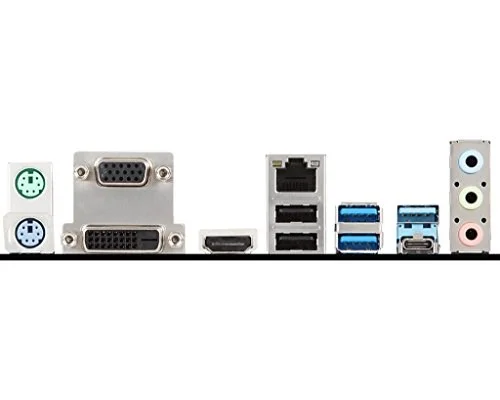

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B360M PRO-VDH |
| SKU Code | B360M PRO-VDH |
| GTIN / EAN | 824142159491 |
