Description

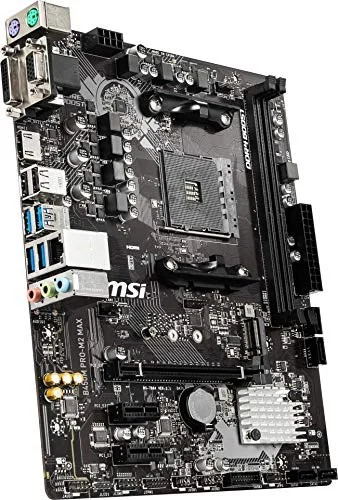

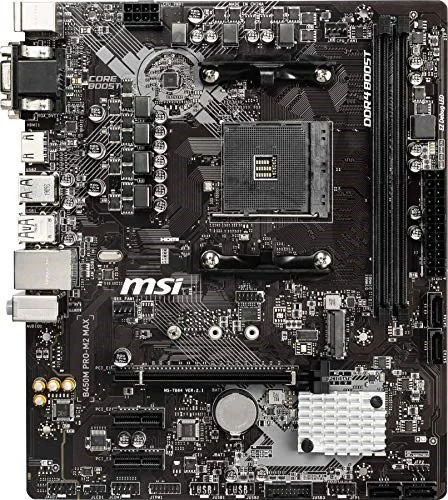

The MSI B450M PRO-M2 MAX is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4133 MT/s (OC).

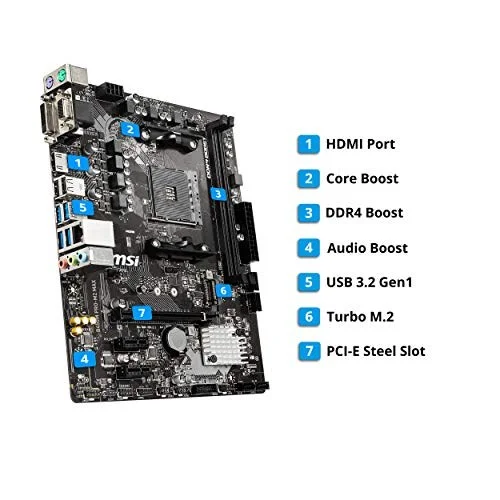

- Supports 1St, 2Nd And 3Rd Gen AMD Ryzen/ Ryzen With Radeon Vega Graphics And 2Nd Gen AMD Ryzen With Radeon Graphics/ Athlon With Radeon Vega Graphics Desktop Processors For Socket AM4
- Supports DDR4 Memory, Up To 3466+(OC) Mhz
- DDR4 Boost: Advanced Technology To Deliver Pure Data Signals For The Best Performance And Stability
- Audio Boost: Reward Your Ears With Studio Grade Sound Quality
- Pci-E Steel Slot: Protecting VGA Cards Against Bending
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B450M PRO-M2 MAX |
| Launch Date | September 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

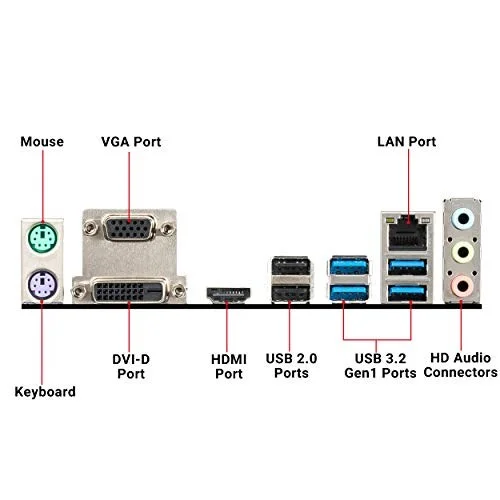

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450M PRO-M2 MAX |
| SKU Code | B450M PRO-M2 MAX |
| GTIN / EAN | 824142189689 |
