MSI B450M PRO-VDH MAX AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

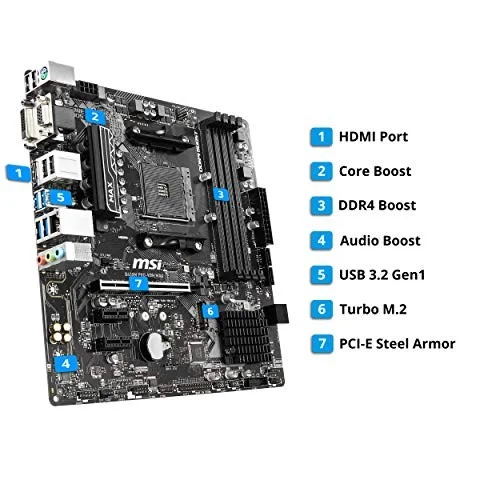

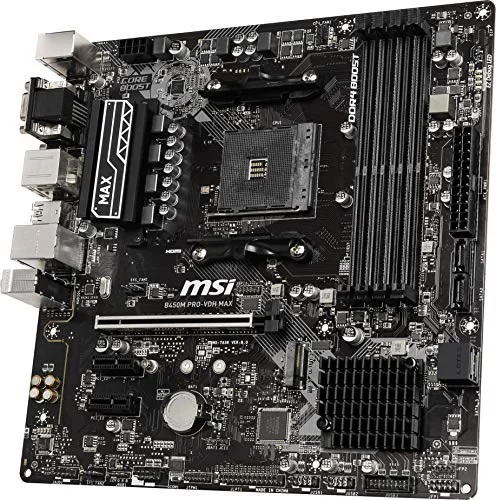

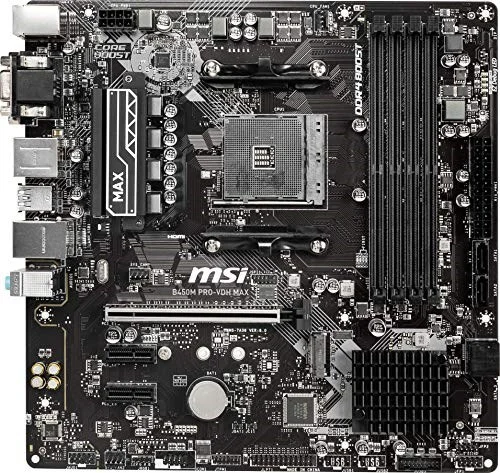

The MSI B450M PRO-VDH MAX is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3866 MT/s (OC).
- Supports 1St, 2Nd And 3Rd Gen AMD Ryzen/ Ryzen With Radeon Vega Graphics And 2Nd Gen AMD Ryzen With Radeon Graphics/ Athlon With Radeon Vega Graphics Desktop Processors For Socket AM4
- Supports DDR4 Memory, Up To 3466+(OC) Mhz
- Turbo M.2: Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds
- Ez Debug LED: Easiest Way To Troubleshoot
- Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provide Better Performance
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B450M PRO-VDH MAX 7A38-043R B450PVDHMAX |
| Launch Date | September 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3733 / DDR4-3866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

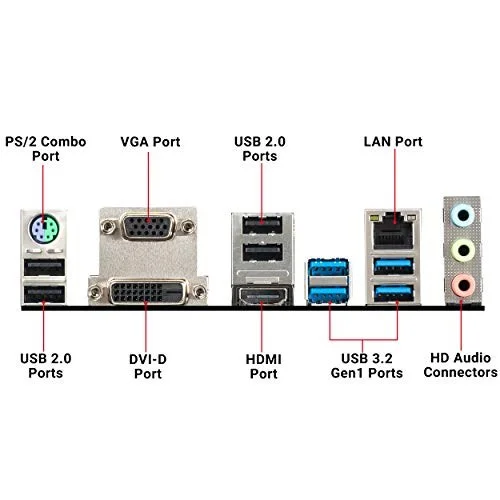

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450M PRO-VDH MAX |
| SKU Code | B450M PRO-VDH MAX |
| GTIN / EAN | 824142194430 |
