MSI B450M PRO-VDH PLUS AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

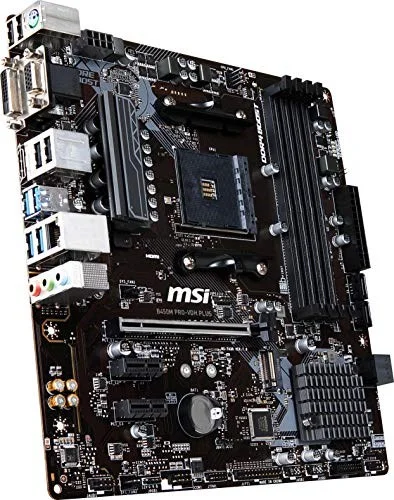

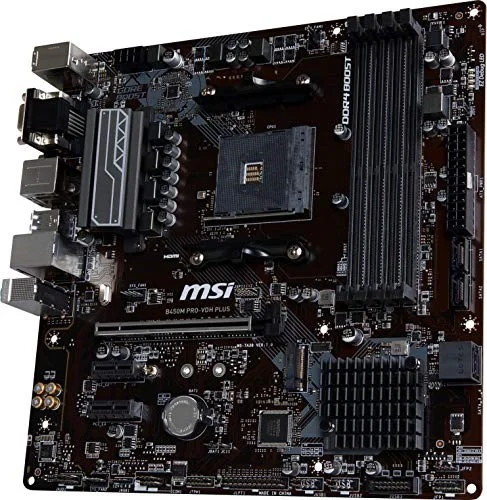

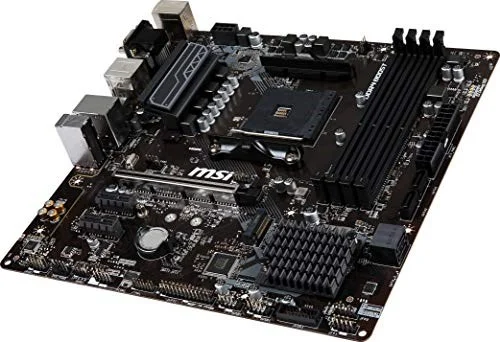

The MSI B450M PRO-VDH PLUS is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).
- Supports AMD RYZEN 1St And 2Nd Generation/Ryzen With Radeon Vega Graphics Processors For Socket AM4
- Supports Ddr4-3466+(Oc) Memory
- Turbo M.2: Delivering Speeds Up To 32GB/S
- Pci-E Steel Armor: Protecting VGA Cards Against Bending For Better Performance, Stability And Strength
- Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provide Better Performance
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B450M PRO-VDH PLUS B450PVDHPLUS |
| Launch Date | February 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

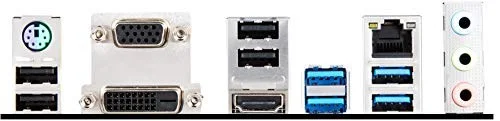

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450M PRO-VDH PLUS |
| SKU Code | B450M PRO-VDH PLUS |
| GTIN / EAN | 824142177877 |
