MSI B460M PRO LGA1200 Micro-ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

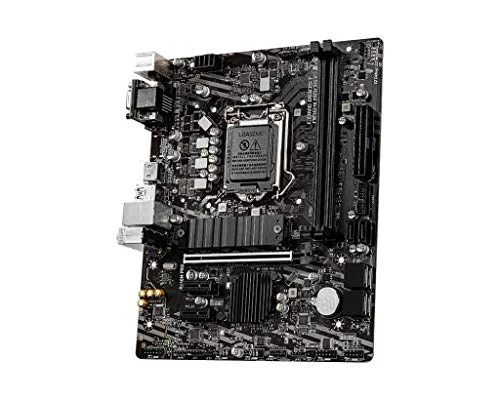

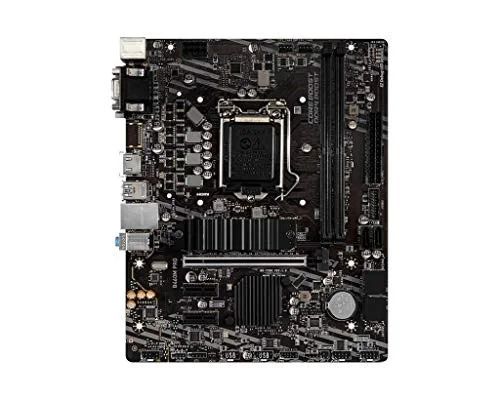

The MSI B460M PRO is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core / Pentium Celeron Processors For LGA 1200 Socket
- Supports DDR4 Memory, Up To 2933(Max) Mhz
- Core Boost: With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance
- DDR4 Boost: Advanced Technology To Deliver Pure Data Signals For The Best Performance And Stability
- M.2 Shield Frozr: Strengthened Built-In M.2 Thermal Solution. Keeps M.2 Ssds Safe While Preventing Throttling, Making Them Run Faster
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B460M PRO |
| Launch Date | July 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

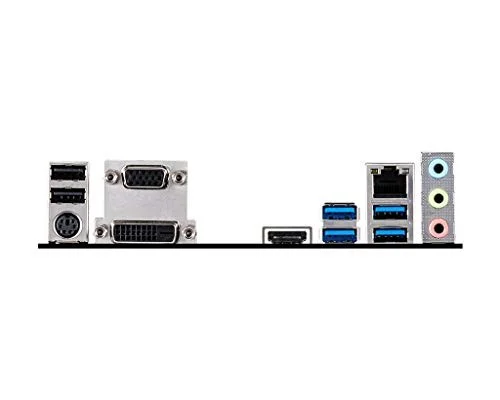

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B460M PRO |
| SKU Code | B460M PRO |
| GTIN / EAN | 824142218143 |
