MSI B560M PRO WiFi LGA1200 Micro-ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

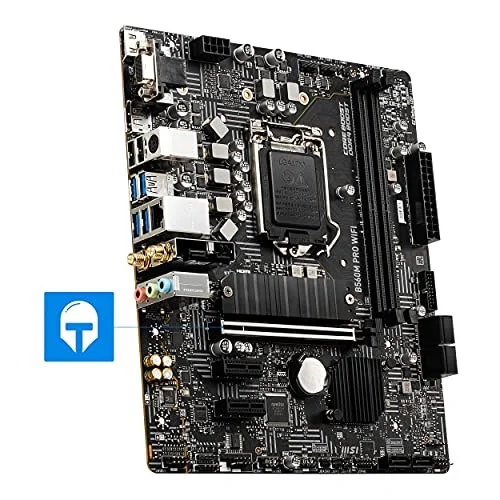

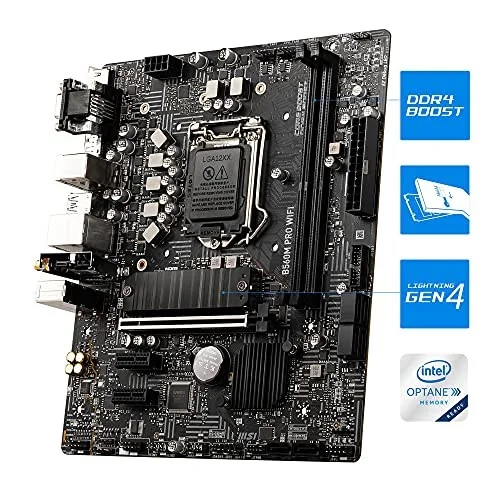

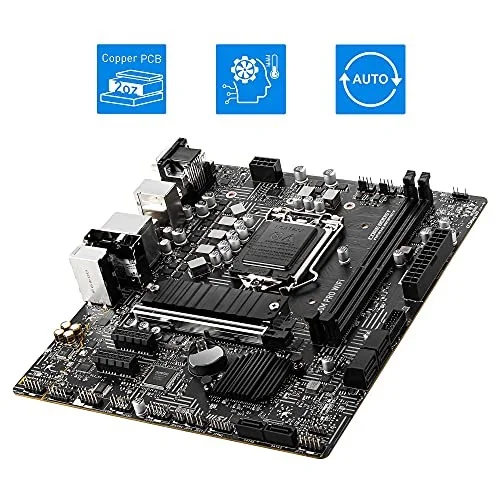

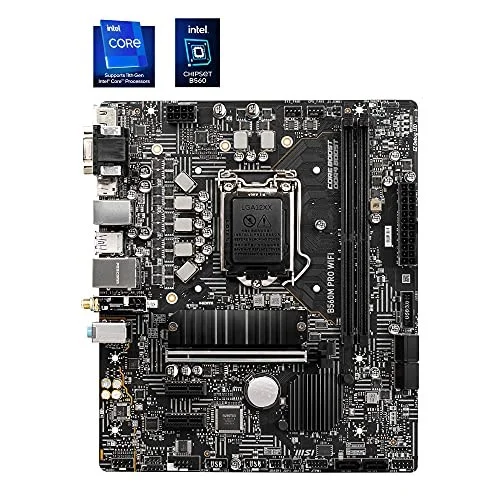

The MSI B560M PRO WiFi is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 5200 MT/s (OC).
- Supports 11th and 10th Gen Intel Core / Pentium / Celeron processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability
- Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | B560M PRO WIFI 7D21-001R |
| Launch Date | May 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B560 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4600 / DDR4-4700 / DDR4-5200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

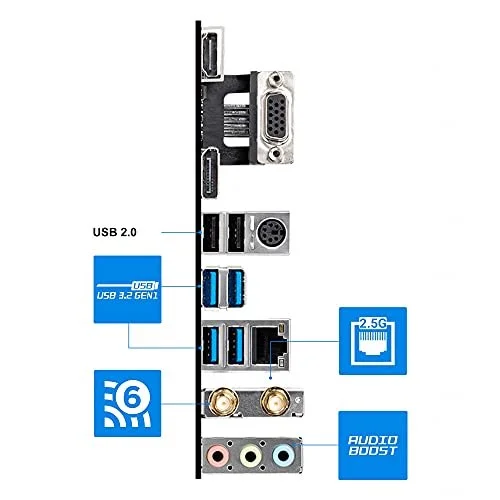

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B560M PRO WIFI |
| SKU Code | B560M PRO WIFI |
| GTIN / EAN | 824142250075 |
