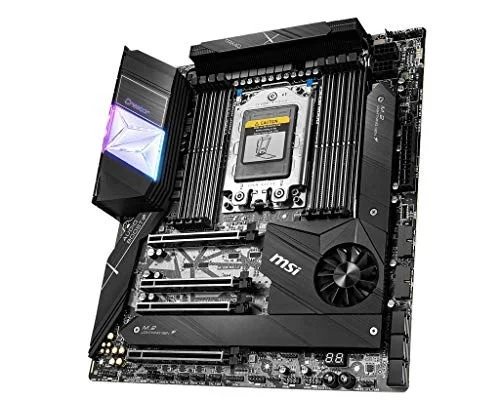

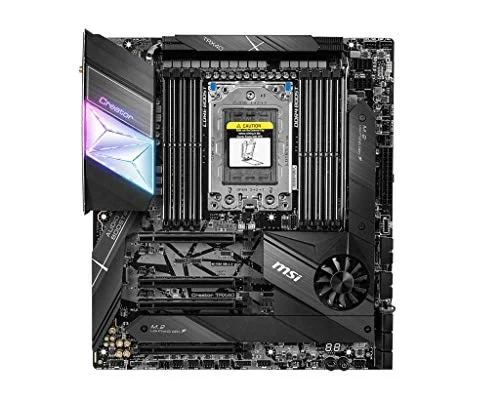

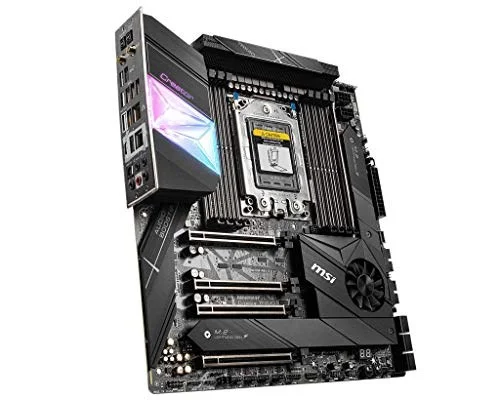

MSI Creator TRX40 sTRX4 EATX DDR4 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Creator TRX40 is a EATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).
- Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provides Better Performance.
- 10G Super LAN: Next Level Speed, Secure Networking With Fastest Data Throughput To Improve Efficiency.
- Wi-Fi 6: The Latest Wireless Solution Supports MU-MIMO And Bss Color Technology, Delivering Speeds Up To 2400Mbps.
- Lightning USB 20G: ASM3242 USB 3. 2 Gen2x2 Controller Offers The Fastest USB Speeds With Stability.
- Total Thermal Solution: Premium Thermal Design Included Frozr Heatsink, Extended Heatsink And Heat-Pipe.
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Creator TRX40 |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Creator TRX40 |
| SKU Code | Creator TRX40 |
| GTIN / EAN | 824142199428 |
Price History (last 12 months)
Plots available price points within the past 12 months.
